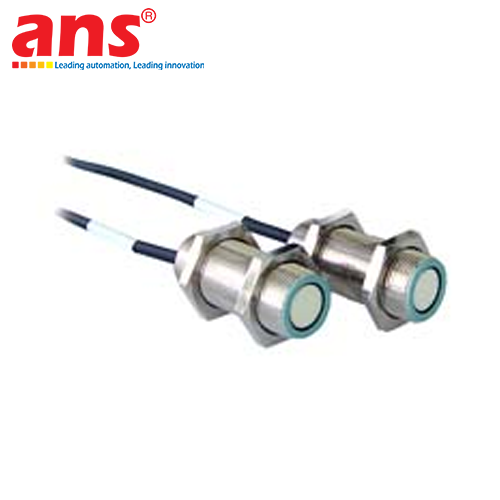

• Ultra-Short Mechanical Enclosure Profile: The sensor shell profiles a highly optimized cylindrical layout showing an M12 x 1 mechanical threading outline with an outer diameter of 12 mm and a total casing length of a mere 20 mm. This makes it one of the most compact, space-saving industrial ultrasonic instruments available in the global automation automation market. This hardened micro-envelope empowers mechanical engineering crews to plant the device deep inside structural tool slots, automated robotic gripper fingers, small conveyor paths, or compact machine bays where standard industrial sensors cannot be deployed.

• Extended Extended Pigtail Cable Assembly: Moving away from rigid connector ports that require secondary clearance room for wire bending, the DB112 UP.1-20,2500 integrates a pre-wired, high-flex polyurethane jacketed cable measuring an extended 2500 mm (2.5 meters) length, terminated with a standardized 3-pin M12 male quick-disconnect quick coupling nut assembly. This pigtail extension design deflects mechanical bending stresses and torque forces away from the main housing joint during dynamic operations, sealing the unit completely against moisture ingress and maximizing structural wire lifecycles.

🛠️ CRITICAL FIELD CONTROL & TRANSDUCER ALIGNMENT METRICS:

• Deterministic Transmitter Blind Zone Boundary: The mechanical physics of ultrasonic wave generation requires a trace damping interval to allow the piezoelectric element to cease mechanical oscillation after a pulse blast. Consequently, the sensor exhibits a fixed physical Blind Zone of 15 mm measuring from the active front cap face. Within this spatial boundary, returned echo waves cannot be captured. Field technicians must position the sensor head ensuring the target material surface never steps inside this 15 mm dead zone to completely prevent signal dropout errors.

• Assured Close-Range Operational Envelope: The factory-certified assured operating window spans tightly from 15 mm up to 30 mm. This short-range calibration focuses the sensor's tracking power specifically on high-resolution, close-proximity indexing loops with micro-millimeter deviation tolerances.

Severe-Duty Material Hardening and Electrical Specifications: The delicate internal calculating microchips and transducer elements are encased inside a premium heavy-walled Nickel-Plated Brass structural casing, yielding a total hardware net weight of an ultra-lightweight 30 grams—perfect for protecting structural dynamics on moving high-velocity robotic links. This premium metallurgy delivers superb defense against physical impact shocks, mechanical wear, and ambient plant floor chemical descalers.

Certified to international IP65 protective ingress indices, the enclosure provides a dust-tight barrier impervious to fluid splashes or facility condensation. Driven smoothly by a flexible industrial utility range of 10 to 30 VDC, the hardware consumes an exceptionally efficient no-load current of less than or equal to 10 mA. It operates with absolute consistency over an extended thermal window scaling from minus 25 to plus 70 degrees Celsius, routing discrete logic output signals over a standardized 3-wire wiring layout directly to central PLC processors.
