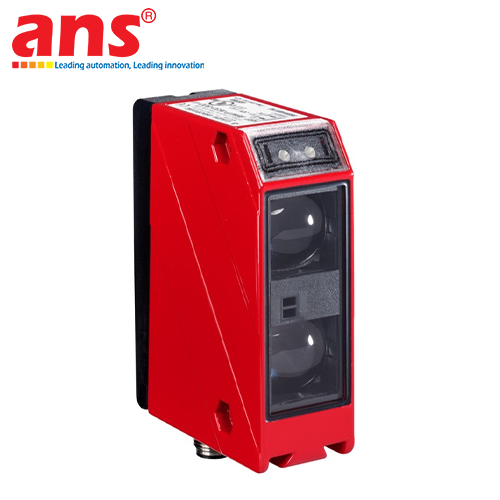

Leuze HRT 96M/P-1630-800-41 (Order Code: 50080047)

Product Overview: The Leuze HRT 96M/P-1630-800-41 diffuse reflection photoelectric sensor with integrated background suppression is a premium heavy-duty object diagnostics instrument belonging to the world-renowned Series 96 portfolio, engineered and manufactured by Leuze in Germany. Within high-tier industrial automation networks, high-velocity sorting lines of automated logistics hubs, automated pallet handling centers, and intensive mechanical packaging systems, executing flawless target telemetry without experiencing interference from the immediate surrounding layout is a critical operational standard. The HRT 96M/P-1630-800-41 variation profiles a completely hardened mechanical structure utilizing a rugged die-cast zinc casing coupled with a scratch-resistant glass optical window, preserving absolute data fidelity over multi-year operational loops under demanding facility conditions.

Advanced Background Suppression (BGS) Dynamic Topology: The underlying technological paradigm driving the HRT 96M/P-1630-800-41 variant leverages sophisticated Background Suppression (BGS) physics. Unlike standard diffuse reflection sensors that are easily compromised when background structures (such as concrete warehouse walls, steel machinery frames, or dark rubber conveyor belts) display high reflective properties, the BGS engine relies on precise optical triangulation principles. The hardware projects a focused visible Red LED beam onto the target medium.

The internal receiver lens array continuous captures the returned wave vectors, calculating the exact interception angle to compute target proximity with high data resolution. Consequently, the sensor triggers its output matrix exclusively when a target enters the predetermined nominal tracking window (spanning from 100 to 800 mm), systematically ignoring all background obstructions or automated movements sitting outside the configured zone.

Real-World Scenario: If the calibrated tracking boundary is set to 800 mm, a shipping container gliding along a belt at a distance of 500 mm will immediately trigger precise detection; simultaneously, a structural building wall or a moving mechanical arm located 2 meters away is completely filtered out by the tracking algorithm, eliminating false signal errors.

Absolute Material and Color Independence Metrics: A defining engineering asset of the HRT 96M model family is its exceptional capability to minimize distance migration across diverse object colors and surface finishes. The guaranteed operational tracking boundary for a standard White target (90% reflectivity) scales from 0.1 to 0.8 meters; a standard Gray target (18% reflectivity) tracks smoothly from 0.1 to 0.77 meters; and even an intensive carbon Black target (exhibiting a trace 6% reflectivity) is flawlessly resolved across a 0.1 to 0.73-meter envelope.

The absolute maximum limit reaches up to 1.2 meters for white targets and 1.05 meters for deep black surfaces. This performance proves the premium capability of Leuze optical lenses to reject material color variables, enabling processing grids to run seamlessly without needing hardware re-calibration when switching production batches from light-toned packages to dark-toned containers.

🛠️ FIELD INSTALLATION PROMPT & HARDWARE ARCHITECTURE:

• High-Precision Multiturn Potentiometer Calibration: The transmitter body incorporates an integrated adjustment knob driven by a Multiturn Potentiometer architecture. This multi-rotation mechanical configuration empowers field automation crews to execute baseline distance calibration with high resolution, locking onto tight millimeter tolerances. This layout replaces single-turn variable resistors prone to drift, keeping the configured boundary stable against heavy industrial vibration forces generated by high-power conveyor motor drives.

• Synchronized Telemetry Output Matrix: Features concurrent real-time data loops via two independent solid-state loops: Output 1 (PNP - Light Switching / Energizes upon light return) and Output 2 (PNP - Dark Switching / Energizes upon signal loss). This dual architecture empowers supervisory PLC processors or BMS control cards to interface with the preferred logic state straight from the hardware without requiring secondary logic-inverting relays inside the control panel, saving space and reducing material overhead.

Severe-Duty Environmental Hardening Specifications: To shield internal calculation microchips and optical emitting diodes from physical trauma, the sensor internals are encased inside a heavy-duty Zinc Die-cast housing matching a premium Glass optical window. This robust assembly yields a total hardware weight of 380 g, effortlessly deflecting direct impacts from falling plant debris or loose parts.

Certified to strict IP67 environmental ingress ratings, it acts as a dust-tight barrier impervious to complete fluid immersion over short intervals. The hardware operates with absolute stability over an extended thermal window spanning from minus 40 up to plus 55 degrees Celsius, making it suitable for cold-storage food facilities or adjacent high-heat furnace systems. Electrical interface routing utilizes a standard M12, 4-pin, A-coded male plug connection, allowing field crews to route premium 18 to 22 AWG shielded instrumentation cabling to repel industrial electromagnetic noise (EMI) from nearby variable frequency drives (VFDs).
