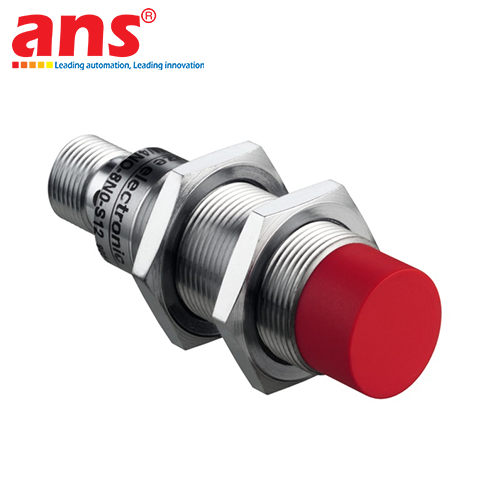

Leuze IS 218MM/2NO-8N0 (Order Code: 50109698)

Product Overview: The Leuze IS 218MM/2NO-8N0 inductive proximity sensor is a high-performance solid-state metal diagnostics instrument belonging to the world-renowned cylindrical Series 218 portfolio, engineered and manufactured by Leuze in Germany. Within modern automated machinery frameworks, heavy stamping lines, high-output packaging clusters, and manufacturing material handling networks, executing non-contact target tracking with absolute high-speed response and long-term mechanical reliability is a fundamental control requirement.

The IS 218MM/2NO-8N0 variation profiles a completely hardened mechanical structure utilizing a nickel-plated brass housing paired with an advanced integrated circuit designed to repel ambient electromagnetic frequency (EMF) noise, ensuring continuous error-free data logging across heavy industrial plant floor zones.

Eddy Current Killed Oscillator (ECKO) Measurement Paradigm: The underlying technological paradigm driving the IS 218MM/2NO-8N0 variant leverages sophisticated high-frequency Eddy Current Killed Oscillator (ECKO) physics. The sensor's active front sensing face, molded from high-grade industrial PBT polymer, continuously projects a high-frequency alternating electromagnetic field outwards into the proximate spatial tracking zone. When a target medium composed of conductive metal (such as structural steel, stainless steel, aluminum, or copper) enters this alternating magnetic path, localized circulating loop currents—known as Eddy Currents—are automatically induced across the metallic target's surface according to Faraday's law of induction.

These induced eddy currents generate a secondary, counter-acting magnetic field that drains energy straight from the sensor's internal LC tank oscillator circuit, causing a significant dampening of the internal oscillation amplitude. The integrated solid-state logic engine analyzes this microscopic amplitude reduction loop with high resolution, immediately shifting the output status of the solid-state NPN transistor loop to pass automated control discrete data over long cable runs straight to a central controller. Because this tracking mechanism relies entirely on electromagnetic properties, the sensor remains completely unaffected by non-metallic ambient contaminants like grease layers, wood pulp particles, scale buildup, paper debris, or fluid splashing, sustaining absolute tracking fidelity.

🛠️ FIELD INSTALLATION PROMPT & MECHANICAL FOOTPRINT ALIGNMENT:

• Non-Flush (Non-Embedded) Structural Footprint: The defining mechanical asset of this hardware package centers on its Non-Flush geometry. In this layout, the PBT plastic sensing cap containing the primary electromagnetic coil remains completely exposed past the thread line, lacking metal shielding armor. Consequently, field technicians mounting the device onto automated metal frames must ensure the plastic front cap protrudes entirely past the surrounding metallic support structure, preventing complete chôn embedded placement. The primary advantage of a non-flush architecture lies in its expanded radial and axial electromagnetic field propagation, allowing the device to secure a massive nominal tracking range of 8 mm—vastly outperforming standard flush M18 variations restricted to a trace 4 to 5 mm envelope.

• Optimized Operational Tracking Thresholds: While the theoretical nominal dynamic bound is rated at 8 mm, the factory certified assured operating distance window spans from 0 to 6.4 mm to account for thermal expansion and mechanical equipment vibration variances. Field crews should position the sensor face at a steady distance of 4 to 6 mm relative to the passing metal phôi plates to capture peak data sensitivity.

Metallurgical Correction Factors and Hardened Electronic Ingress Protection: In professional automation loop engineering, the effective switching distance must be adjusted using deterministic metallurgical multipliers based on the target material's electrical conductivity and relative magnetic permeability. The baseline nominal value of 8 mm is calibrated using structural Carbon Steel Fe360 (Correction Factor set to 1.0). When tracking anti-corrosive Stainless Steel components, the effective switching threshold shifts down to roughly 5.6 mm (Correction Factor of 0.7). For industrial Brass phôi bars, it achieves approximately 4.0 mm (Correction Factor of 0.5), and when processing high-conductivity materials like pure Aluminum sheets or raw Copper tracks, the reliable operating range locks stably at about 3.2 mm (Correction Factor rated at 0.4).

The internal solid-state circuitry of the IS 218MM/2NO-8N0 model is reinforced with premium heavy-duty protection mechanisms: native reverse polarity power isolation, output short-circuit barrier containment, and an integrated inductive voltage spike suppressor designed to damp back-EMF feedback generated by high-power inductive relay coils inside the automated cabinet. The device provides an extraordinary switching frequency of precisely 2000 Hz—executing 2000 logic discrete operations inside a single-second timeframe—making it a perfect asset for rapid gear-tooth counting or timing cam validation loops. Sealed within a heavy-walled IP67 environmental enclosure, the transmitter remains impervious to dust infiltration and powerful water sprays, delivering an exceptional statistical MTTF runtime longevity of roughly 900 years under harsh facility parameters.
