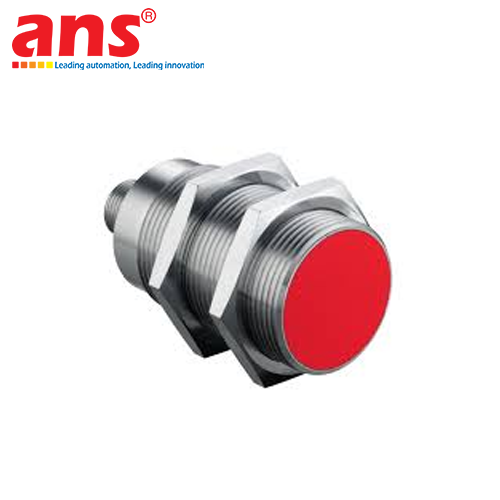

Leuze IS 230MM/4NO-10E-S12 (Order Code: 50109713)

Product Overview: The Leuze IS 230MM/4NO-10E-S12 inductive proximity sensor is a high-performance solid-state metal diagnostics instrument belonging to the world-renowned cylindrical Series 230 portfolio, engineered and manufactured by Leuze in Germany. Within heavy-duty automated manufacturing setups, heavy automated steel stamping lines, high-output automated packaging clusters, and complex materials handling tracks, executing non-contact target tracking with absolute long-term mechanical reliability requires field components that feature large thread footprints designed to absorb structural shock variables alongside high-resolution signal response latencies.

The IS 230MM/4NO-10E-S12 variation addresses these operational parameters directly by combining a heavy-walled nickel-plated brass M30 enclosure with an advanced internal circuit designed to repel industrial electromagnetic frequency (EMF) noise, ensuring continuous error-free data logging across heavy facility floor zones.

Nomenclature Product Code Breakdown: According to Leuze's official ordering criteria, the comprehensive model string IS 230MM/4NO-10E-S12 decodes into the following integrated technical block matrix:

• IS: Identifies the hardware module operating on Inductive Sensor physics.

• 230: Belongs to Leuze's large-diameter cylindrical industrial Series 230 hardware family.

• MM: Specifies a rugged threaded cylindrical body machined from dense metal alloy matrices.

• 4NO: Configures the primary discrete control output stage for Normally Open operation.

• 10E: Represents a nominal target tracking distance threshold of 10 mm, optimized for embeddable/flush mechanical layout mounting.

• S12: Terminal interface routes via a standardized quick-disconnect M12 male connector joint.

Eddy Current Oscillation Physics & Mechanical Advantages of Flush Mounting: The underlying technological paradigm driving the IS 230MM/4NO-10E-S12 variant leverages sophisticated high-frequency Eddy Current Killed Oscillator (ECKO) physics. The sensor's active front sensing face, molded from high-grade industrial PBT polymer, continuously projects a high-frequency alternating electromagnetic field outwards into the proximate spatial tracking zone. When a target medium composed of conductive metal enters this alternating magnetic path, localized circulating loop currents—known as Eddy Currents—are automatically induced across the metallic target's surface. These induced eddy currents generate a secondary, counter-acting magnetic field that drains energy straight from the sensor's internal LC tank oscillator circuit, causing a significant dampening of the internal oscillation amplitude. The integrated solid-state logic engine analyzes this amplitude reduction loop with high resolution, immediately shifting the output status of the solid-state PNP transistor loop to pass automated control discrete data over long cable runs straight to a central controller.

The definitive mechanical asset of this hardware package centers on its Flush (Embeddable) geometry. In this layout, the PBT plastic sensing cap containing the primary electromagnetic coil remains completely shielded past the thread boundary by the extended metal M30 casing wall. Consequently, field technicians mounting the device onto automated metal frames can chôn embed the sensor completely flush with the surrounding metallic support structure without triggering lateral magnetic cross-talk or side-interference errors. This flush architecture provides maximum physical armor for the sensor face against oncoming mechanical impacts, dramatically extending hardware service life parameters inside aggressive processing plants.

🛠️ FIELD INSTALLATION PROMPT & MECHANICAL TORQUE METRICS:

• Assured Operational Tracking Windows: While the theoretical nominal dynamic bound is rated at 10 mm, the factory certified assured operating distance window spans from 0 to 8.1 mm to account for thermal expansion and equipment vibration variances. Field crews should position the sensor face at a steady distance of 6 to 8 mm relative to the passing metal phôi plates to capture peak data sensitivity while maintaining clear physical safety gaps.

• Rigid M30 Mechanical Thread Engagement: The transmitter body framework features a fine mechanical thread pitch showing an M30 x 1.5 path with a compact total length of 63.5 mm. When locking the device onto industrial chassis plates using the pre-supplied dual nuts, electrical crews must strictly observe standard wrench torque limitations to avoid stripping the brass thread structure or compressing internal circuit potting layers.

Metallurgical Multipliers and Hardened Circuit Protection: In professional automation loop engineering, the effective switching distance must be adjusted using deterministic metallurgical multipliers based on the target material's electrical conductivity and relative magnetic permeability. The baseline nominal value of 10 mm is calibrated using structural Carbon Steel Fe360 (Correction Factor set to 1.0). When tracking anti-corrosive Stainless Steel components, the effective switching threshold shifts down to roughly 8.0 mm (Correction Factor of 0.8). For industrial Brass components, it achieves approximately 5.5 mm (Correction Factor of 0.55). When processing pure Aluminum targets, the range scales to 4.5 mm (Correction Factor of 0.45), and when tracking raw Copper tracks, the reliable operating range locks stably at about 4.0 mm (Correction Factor rated at 0.4).

The internal solid-state circuitry of the IS 230MM/4NO-10E-S12 model is reinforced with premium heavy-duty protection mechanisms: native reverse polarity power isolation, output short-circuit barrier containment, and an integrated inductive voltage spike suppressor designed to damp back-EMF feedback generated by high-power inductive relay coils inside the automated cabinet. The device provides an extraordinary switching frequency of precisely 1200 Hz—executing 1200 logic discrete operations inside a single-second timeframe—making it a perfect asset for rapid gear-tooth counting or timing cam validation loops. Sealed within a heavy-walled IP67 environmental enclosure, the transmitter remains impervious to dust infiltration and powerful water sprays, delivering an exceptional statistical runtime longevity across a wide thermal facility boundary scaling from minus 25 to plus 70 degrees Celsius with a net mass of 130 grams.
