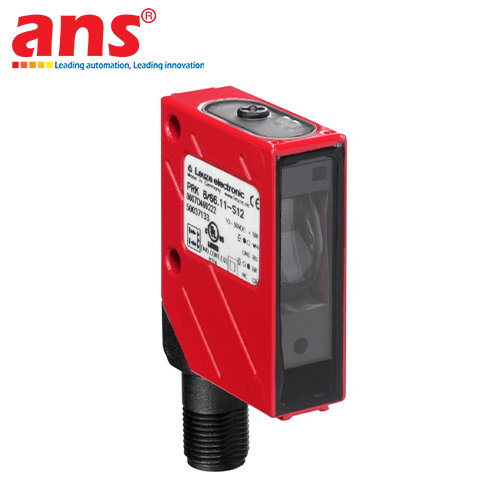

Leuze PRK 8/44-S12 (Order Code: 50036360)

Product Overview: The Leuze PRK 8/44-S12 polarized retro-reflective photoelectric sensor is a premium long-range object diagnostics instrument belonging to the heavy-duty metal Series 8 portfolio, engineered and manufactured by Leuze in Germany. Within advanced automated infrastructures, high-velocity sorting lines of automated logistics hubs, intensive stretch-wrap packaging cells, and continuous labeling machinery, executing flawless target telemetry without experiencing blind saturation errors from shiny or mirror-like surfaces is a core requirement.

The PRK 8/44-S12 variation addresses this operational parameter directly by integrating sophisticated geometric polarization filtering hardware encased inside an ultra-rugged die-cast zinc casing, preserving absolute soundwave signal stability and ensuring continuous 24/7 industrial automation runtimes without error logs.

Polarized Retro-Reflective Optical Dynamics: The underlying technological paradigm driving the PRK 8/44-S12 variant leverages sophisticated Polarized Retro-Reflective physics based on single-axis co-axial optics. The transmitter projects a focused visible Red LED beam with a 660 nm wavelength outward into the proximate spatial tracking zone. In the standard unobstructed baseline state, the projected wave vectors hit an external industrial reflector grid and rebound straight into the receiver optical lens of the device, creating a locked continuous data loop. When an oncoming object breaks the spatial boundary between the sensor face and the reflector array, the light path is broken, triggering an automated status shift inside the solid-state electronic output stage.

The key engineering asset of this hardware package centers on its integrated dual-axis optical polarization filtering sheets positioned over both the emitter and receiver lenses. As the visible red light glides through the emitter gate, it becomes linearly polarized along a specific geometric plane. When this polarized wavefront hits a certified Leuze lăng kính reflector, the geometric microstructure rotates the polarization plane by exactly 90 degrees before deflecting it back. The receiver optical lens array is engineered exclusively to pass light vectors that match this shifted angle.

Consequently, if a highly reflective medium like a polished stainless steel profile or a clear clear cellophane wrap passes through the tracking line, its direct specular glare (which preserves the original emitter polarization plane) is entirely rejected by the internal optical gate. This topology ensures the sensor never encounters blind saturation errors or false output triggers from high-glare target variations.

🛠️ FIELD INSTALLATION PROMPT & MECHANICAL FOOTPRINT ALIGNMENT:

• High-Fidelity Visible Red Spot Solution: The 660 nm wavelength visible red LED emitter shapes a sharp, high-contrast tracking spot easily visible to the naked eye against the external reflector face under dense facility automated lighting. This visual aid empowers field mechanical crews to execute fast position calibration without deploying specialized alignment instrumentation, lowering system setup timelines.

• Heavy-Duty 90-Degree Rotatable M12 Interface Gland: The electrical backbone of the transmitter routes via an integrated M12 Male Connector featuring a 5-pin, A-coded layout with a rugged metal coupling nut. This interface block can be mechanically rotated up to an angle of 90 degrees directly at the casing core. This mechanical flexibility allows field electrical crews to adjust the wire routing method to align perfectly with rigid or liquid-tight protective conduits, avoiding cable joint stress in chật hẹp machine chases and maximizing instrumentation lifecycle parameters.

Severe-Duty Hardening Specifications & High-Frequency Telemetry: The sensor achieves an exceptional guaranteed operating distance spanning from 0.1 to 6.4 meters when coupled with a certified Leuze industrial reflector block, with an absolute maximum dynamic bound of 8 meters. To protect delicate calculating microchips and optical emitting diodes from severe industrial trauma, the internals are armored inside a premium heavy-walled Zinc Die-cast shell coated in high-visibility industrial red finish, paired with a scratch-resistant tempered Glass window lens. This robust layout brings a total net hardware mass of 59 grams, effortlessly absorbing high-frequency mechanical vibration shocks that compromise standard plastic sensors.

Certified to strict IP67 and IP69K international ingress protection ratings, the enclosure yields a dust-tight barrier impervious to continuous high-pressure, high-temperature washdown jets from facility sanitation equipment, complying fully with food-grade sanitary control protocols.

The device features concurrent real-time data loops via two independent solid-state channels: Output 1 (PNP - Light Switching / Active on clean reflector loop) and Output 2 (PNP - Dark Switching / Active on light path block). Driven by a flexible industrial utility range of 10 to 30 VDC, the internal electronics resolve process velocity changes with an ultra-fast response speed of precisely 0.33 ms (matching a high-frequency switching frequency of 1500 Hz). This dual setup routes instantaneous discrete telemetry straight to central PLC nodes (Siemens, Omron, Keyence, Allen-Bradley...), tracking high-density product currents without totalization dropouts across an extended thermal window scaling from minus 40 up to plus 60 degrees Celsius.
