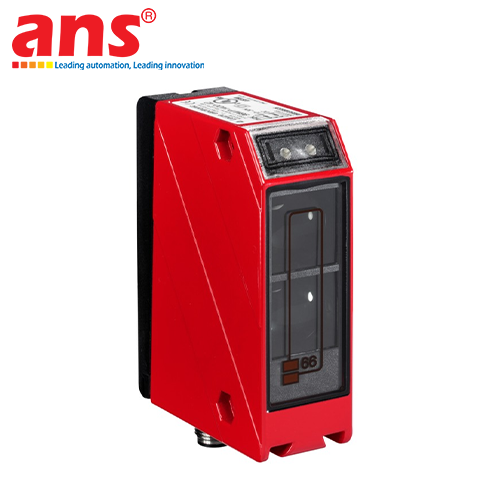

Leuze PRK 96M/A-3410-44 (Order Code: 50082067)

Product Overview: The Leuze PRK 96M/A-3410-44 polarized retro-reflective photoelectric sensor with integrated fieldbus network interface is a premium long-range object diagnostics instrument belonging to the heavy-duty metal Series 96 portfolio, engineered and manufactured by Leuze in Germany. Within high-tier industrial automation networks, high-velocity sorting lines of automated logistics distribution centers, large-scale automated AS/RS smart warehousing grids, and continuous packaging cells, executing flawless target telemetry while coordinating hundreds of localized sensors back to a master PLC controller demands a streamlined topology that minimizes wiring costs and maximizes signal integrity.

The PRK 96M/A-3410-44 variation addresses this operational parameter directly by integrating an onboard AS-Interface (AS-i) bus processing chip encased inside an ultra-rugged zinc die-cast casing, preserving absolute soundwave signal stability and ensuring continuous 24/7 factory automation loops without data drift.

Polarized Retro-Reflective Single-Axis Co-Axial Optics: The underlying technological paradigm driving the PRK 96M/A-3410-44 variant leverages sophisticated Polarized Retro-Reflective physics based on single-axis co-axial optics. The transmitter projects a focused visible Red LED beam outward into the proximate spatial tracking zone. In the standard unobstructed baseline state, the projected wave vectors hit an external industrial reflector grid and rebound straight into the receiver optical lens of the device, creating a locked continuous data loop. When an oncoming object breaks the spatial boundary between the sensor face and the reflector array, the light path is broken, triggering an automated status shift inside the digital processing core.

The key engineering asset of this hardware package centers on its integrated dual-axis optical polarization filtering sheets positioned over both the emitter and receiver lenses. As the visible red light glides through the emitter gate, it becomes linearly polarized along a specific geometric plane. When this polarized wavefront hits a certified Leuze lăng kính reflector, the geometric microfilm structure rotates the polarization plane by exactly 90 degrees before deflecting it back. The receiver optical lens array is engineered exclusively to pass light vectors that match this shifted angle.

Consequently, if a highly reflective medium like a polished stainless steel sheet, glossy polymer container, aluminum can, or stretch-wrapped parcel passes through the tracking line, its direct specular glare (which preserves the original emitter polarization plane) is entirely rejected by the internal optical gate. This topology ensures the sensor never encounters blind saturation errors or false output triggers from high-glare target variations.

Advanced Industrial Automation Networking via AS-Interface (AS-i): The definitive mechatronic asset separating the PRK 96M/A-3410-44 model variant from legacy discrete transistor output devices is its native support for the AS-Interface IO bus protocol. This enables the sensor to clamp directly onto the standard yellow industrial flat ribbon cable, introducing game-changing field configuration advantages:

• Drastic Cable and Conduit Reduction: Instead of running individual point-to-point copper signal lines from every terminal head back to the central electrical cabinet, AS-i loops all nodes onto a single unshielded two-wire common carrier cable loop, saving up to 90 percent of cabling costs and piping space.

• Proactive Remote Diagnostics: Beyond transferring standard binary ON/OFF switching metrics, the AS-i communication loop streams digital device health bits to the master controller. This layout monitors parameter drift, tracing lens dirt layer accumulation or field wire breaks instantly to execute remote maintenance and cut down plant floor downtime.

🛠️ FIELD INSTALLATION PROMPT & METRIC CONFIGURATION:

• Extended Dynamic Operating Envelopes: Backed by premium industrial lens arrays, the sensor secures an exceptionally stable guaranteed operational range spanning from 0.3 meters up to 15 meters when matched with certified Leuze reflectors. The typical absolute maximum tracking boundary reaches smoothly up to 18 meters, making it an exceptional part selection for large pallet transit gateways or broad warehouse lanes.

• High-Resolution 270-Degree Potentiometer Gland: The side casing incorporates an integrated manual 270-degree Potentiometer adjustment screw bọc kín. This layout empowers field technicians to fine-tune light capture sensitivity, compensating for optical beam attenuation across long distances or inside high-dust facility zones.

• Ruggedized Metal Connectorized M12 Link: Electrical interface routing utilizes a standardized M12 Male Connector, featuring a 4-pin, A-coded layout housed inside a rigid threaded metal shell. This layout repels heavy industrial vibration forces and mechanical cable stresses common to heavy material transit machinery.

Severe-Duty Hardening Specifications & High-Frequency Telemetry: To protect the delicate internal calculation microchips and bus transceivers from intense physical trauma, the internals are encased inside a premium heavy-walled Zinc Die-cast shell paired with a scratch-resistant tempered Glass window lens. This heavy-duty assembly brings a total net hardware mass of 380 grams, effortlessly absorbing mechanical vibration shocks that compromise standard plastic sensors. Certified to strict IP67 international ingress protective indices, it provides a dust-tight seal impervious to short-term immersion.

Crucially, the assembly passes strict global ECOLAB chemical compatibility certification, verifying that the metal polymer casing maintains absolute structural integrity when exposed directly to aggressive industrial chemical sanitizing washes or caustic foaming agents.

Driven smoothly by a specialized industrial bus range of 26.5 to 31.6 VDC, the hardware operates across an extended thermal facility boundary spanning from minus 40 up to plus 55 degrees Celsius (perfect for cold-storage automated systems). The internal electronics resolve process velocity changes with a switching frequency of precisely 1000 Hz (delivering a rapid response speed within a 2 ms data latency window), routing instantaneous bus data straight to supervisory PLC setups (Siemens, Allen-Bradley, Omron, Keyence...) to track high-density product currents without data dropouts.
