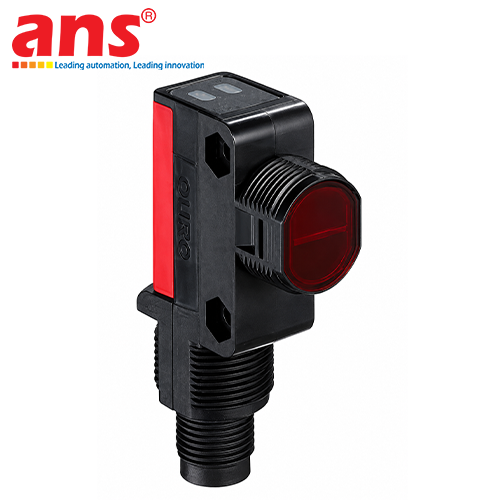

Leuze PRK28/4P-M12 (Order Code: 50117924)

Product Overview: The Leuze PRK28/4P-M12 polarized retro-reflective photoelectric sensor is a premium long-range object diagnostics instrument belonging to the world-renowned compact Series 28 portfolio, engineered and manufactured by Leuze in Germany. Within modern automated mechanical infrastructures, high-velocity sorting lines of automated logistics hubs, intensive film packaging grids, and commercial processing facilities, executing flawless target telemetry without experiencing interference from shiny or mirror-like surfaces (such as polished steel plates, smooth aluminum brackets, glossy plastic containers, or shrink wrap films) is a substantial technical demand.

The PRK28/4P-M12 variation profiles a completely hardened internal polarizing architecture encased inside an ultra-lightweight industrial ABS structure weighing a trace 25 grams, preserving absolute signal fidelity and ensuring continuous 24/7 automation runtimes without error logs.

Polarized Retro-Reflective Dynamic Topology: The underlying technological paradigm driving the PRK28/4P-M12 variant leverages sophisticated Polarized Retro-Reflective physics. The hardware projects a focused visible Red LED beam with a 620 nm wavelength toward a dedicated external reflector. In the standard unobstructed state, the projected wave vectors hit the target reflector grid and rebound straight into the receiver optical window of the device, creating a locked continuous baseline data loop. When an oncoming object breaks the spatial boundary between the sensor face and the reflector array, the sound wave path is interrupted, triggering an automated status shift inside the solid-state electronic output stage.

The key engineering asset of this hardware package centers on its integrated dual-axis optical polarization filtering sheets positioned over both the emitter and receiver lenses. As the visible red light glides through the emitter gate, it becomes linearly polarized along a specific geometric plane. When this polarized wavefront hits a certified Leuze reflector, the geometric grid microstructure rotates the polarization plane by exactly 90 degrees before deflecting it back. The receiver optical lens array is engineered exclusively to pass light vectors that match this shifted angle.

Consequently, if a highly reflective medium like a polished stainless steel sheet or a clear clear cellophane wrap passes through the tracking line, its direct specular glare (which preserves the original emitter polarization plane) is entirely rejected by the internal optical gate. This topology ensures the sensor never encounters blind saturation errors or false output triggers from high-glare target variations.

🛠️ FIELD INSTALLATION PROMPT & METRIC CONFIGURATION:

• High-Fidelity brightVision Fast Alignment Solution: To streamline field system deployment across complex plant arrays, Leuze incorporates proprietary brightVision lens technology. This alignment engine shapes the visible red LED beam into an exceptionally crisp, sharp, and high-contrast spot easily visible to the naked eye under dense automated facility lighting setup. Installation crews simply project this sharp red spot into the geometric center of the reflector face to lock down stable operations immediately, scaling down calibration layout overheads.

• Massive Extended Dynamic Operating Envelopes: When matched with a premium TK(S) series 100x100 mm industrial reflector array, the sensor secures an exceptionally stable guaranteed operational range spanning from 0.02 meters up to 4.5 meters. The typical absolute maximum tracking boundary reaches smoothly from 0.02 meters to a dải limit of 6 meters, allowing deployment along wide principal conveyor junctions or extended automated sorting gateways.

High-Frequency Output Architecture and Hardened Housing:

• Synchronized Dual Transistor PNP Outputs: Features concurrent real-time data loops via two independent solid-state channels: Output 1 (PNP - Light Switching / Energizes upon light return loop) and Output 2 (PNP - Dark Switching / Energizes upon light signal break). Both channels support a maximum driving electrical current rating of less than or equal to 100 mA per port. This dual setup sends instantaneous discrete telemetry directly to central PLC nodes (Siemens, Mitsubishi, Omron...) or automated supervisory platforms with an ultra-fast response speed of precisely 1 ms (matching an electronic switching pulse frequency of 500 Hz), preventing missed counts or totalization dropouts on high-speed product flows.

• Severe-Duty Enclosure Specifications: To protect the delicate computing core and optical emitting diodes from industrial trauma, the internals are encased within a high-density industrial ABS resin frame paired with a durable plastic optical thấu kính array. Certified to international IP67 protective ingress standards, the housing yields a dust-tight barrier impervious to heavy water sprays or ambient plant dampness, operating with absolute consistency over a temperature window scaling from minus 40 up to plus 60 degrees Celsius. Mechanical integration routes through a standard A-coded, M12, 4-pin male socket link, flanked by 2 integrated high-visibility LED status blocks providing clear real-time diagnostics for input power validation and output state verification.
