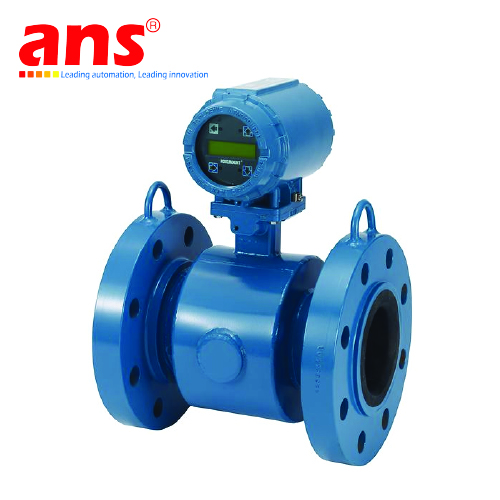

Magnetic Flow Meter 8705TTE010SHW0B3Q4Q8PD Emerson Vietnam
Price: Contact
Brand: Emerson/Vertiv
Category: Flow meter
Supplier: ansvietnam
Origin: Mexico
0911472255Magnetic Flow Meter 8705TTE010SHW0B3Q4Q8PD Emerson Vietnam
Product Description
Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire meter.
Specifications
- AccuracyUp to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown
- Line Sizes½-36 inch (15-900 mm)
- Liner MaterialsPTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber
- Electrode Materials316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium
- Flange RatingsASME B16.5 Class 150-2500DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (30-36 inch only)
- Submergence ProtectionIP68 (Recommended with sealed cable glands)
- InterchangeabilityCompatible with all 8700 Series transmitters
