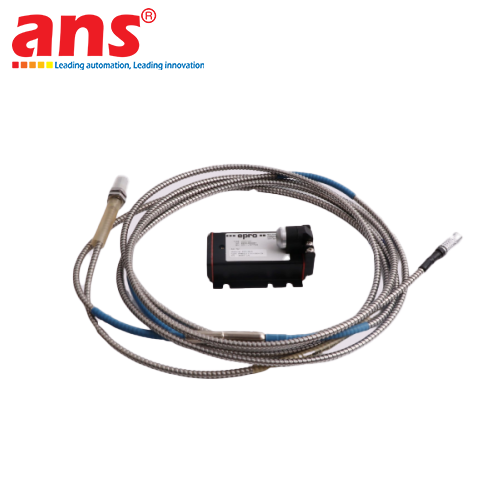

The Emerson Type: PR6423/010-040 Eddy Current Sensor (Displacement Sensor) is a premium, non-contact microelectronic measuring instrument engineered to play a critical and central safety role within modern predictive maintenance networks and automated Turbine Supervisory Instrumentation (TSI) setups. Developed utilizing the advanced engineering heritage of the epro product framework under the global Emerson umbrella, this heavy-duty proximity sensor is custom-tailored for detecting vital dynamic parameters including relative radial shaft vibration, thermal axial position displacement tracking, and the microscopic oil film clearance fluctuations inside heavy journal bearings. The sensor operates flawlessly based on the inductive eddy current principle: when high-frequency electrical currents from a matching driver energize the coil inside the probe tip, a symmetric alternating magnetic field is projected; any displacement of the conductive target metal surface (rotating machine shaft) within this magnetic field cross-section induces localized Foucault currents (eddy currents), modifying the loop impedance which is subsequently translated by a corresponding signal converter into highly linear, microsecond-accurate physical distance metrics.

The specific technical hardware configuration of the Emerson PR6423/010-040 model incorporates an 8mm sensor tip diameter (ECS 8MM) with a fine M10x1 metric thread profile, allowing field engineers to fine-tune the initial installation air gap (static clearance) with exceptional precision. The sensor body features an integrated rigid smooth sleeve with a length of 25mm (25mm Sleeve), facilitating solid and secure mounting through bearing pedestal adapters to fully eliminate reading distortions caused by structural casing background vibrations. The ultimate architectural highlight of this hardware variation lies in its rugged stainless steel flexible protective armor conduit enclosing the sensor cable assembly (Armor). In hostile under-turbine environments—heavily polluted with high-pressure lubrication oil mists, intense thermal radiation, and mechanical shear hazards—the robust steel armor prevents cable crimping, tearing, or premature degradation while executing absolute immunity against external electromagnetic interferences (EMI/RFI). The assembly integrates a 1-meter integral probe cable coupled seamlessly with a 9-meter extension cable (1+9M Cab), creating a perfectly balanced 10-meter total system electrical dielectric profile. The terminal end uses a premium gold-plated LEMO quick-coupling connector, drastically reducing high-frequency signal attenuation and preserving the data integrity of telemetry loops routed to central analysis networks like the Emerson AMS 6500 Machinery Health Monitor. Implementing genuine Emerson PR6423 probes represents a strategic decision for industrial operators looking to secure continuous 24/7 uptime, mitigate severe turbine blade rub-over disaster risks, prevent bearing structural failures, and optimize industrial plant safety lifespans.

• Manufacturer: Emerson (Premium inductive telemetry and epro sensor framework)
• Type Model Identifier: PR6423/010-040
• Measurement Principle: Non-contact inductive eddy current method
• Sensor Tip Diameter Size: 8 mm (ECS 8MM)
• Thread Technical Profile: Metric M10x1 fine thread
• Rigid Smooth Sleeve Length: 25 mm
• Cable Protective Substrate: Heavy-duty stainless steel flexible protective armor (Armor) against mechanical shear and oil ingress
• Cable Length Configuration: 1-meter integral sensor probe cable coupled with a 9-meter system extension cable (1+9M Cab), total system length 10 meters
• Interface Connector Typology: High-performance co-axial LEMO quick-coupling terminal with optimized gold-plated pins
• Standard Measurement Target Material: Ferromagnetic or conductive metal surfaces (Standardized for 42CrMo4 steel or equivalent targets)
• Typical Linear Measuring Stroke: Approximately 2 mm (Dependent on the matched CONxxx driver module setup)
• System Integration Interconnectivity: Fully unified with the AMS 6500 machinery protection framework and standard CON021 / CON041 signal converters
• Structural Protection Rating: Hermetically sealed probe architecture resistant to high-pressure oil mist, steam ingress, and harsh chemical washes
• Ambient Operating Temperature Envelope: Broad working spectrum from -35°C up to +150°C, custom-engineered for harsh internal bearing fields
• Country of Origin: Germany
