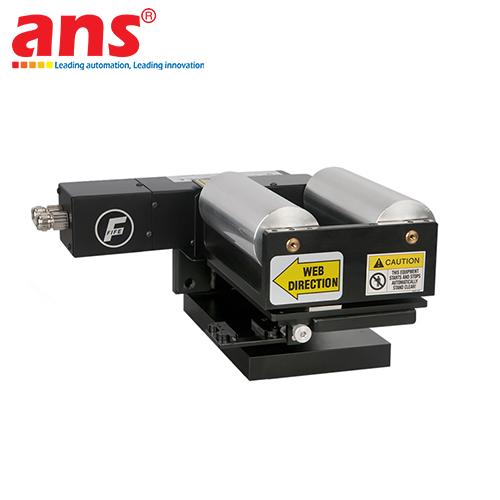

The Maxcess FIFE-500 Web Guiding System (System/Component Part Number: C000189-4944) represents a world-class, premium-grade integrated automation solution researched and manufactured by the legendary Fife brand (a vital core subsidiary under Maxcess Group - USA). Within heavy industrial multi-tier continuous web processing and converting lines handling flexible packaging substrates, rotogravure or flexographic printing webs, paper roll conversions, technical non-woven fabrics, or advanced lithium battery electrode coatings, raw web materials run across intricate roller matrices at exceptional linear velocities. Under the volatility of changing web tensions, mechanical axis tolerances, or asymmetrical raw rolls, continuous tracking drift or weaving deviations are frequent systemic hazards. Edge drift measured in fractions of a millimeter severely compromises downstream registration accuracy, precipitating color overlay defects, open-edge packaging leaks, or badly wound finished rolls that translate into steep operational scrap overheads. The FIFE-500 system counteracts this manufacturing vulnerability, delivering ultra-rapid real-time web corrections to lock the material precisely on path.

The operational benchmark distinguishing the FIFE-500 C000189-4944 series centers on its compact All-in-One system architecture engineered to maximize space utilization. This platform seamlessly unifies a high-speed digital microprocessor controller, a responsive electromechanical actuator, and a ruggedized steering guide carriage framework into a single plug-and-play module. Utilizing its advanced digital telemetry core, the FIFE-500 continuously processes position data packets received from high-end digital edge sensors (such as DSE-22, DSE-23, or DSE-31) to instantly calculate web deviations. It then commands its high-torque motor via a zero-backlash precision Ball Screw infrastructure to modulate the angular velocity and orientation of the steering guide rollers, returning the undulating web to its synchronized centerline trajectory in milliseconds. The instrument incorporates a vivid graphical user interface touchscreen HMI color screen displaying live single-line operational mimic diagrams, facilitating easy tuning of PID control parameters, edge guiding, center guiding, or line tracking setups. Machined from aircraft-grade structural alloys and chemical-anodized against abrasive processing papers and solvent inks, the FIFE-500 guarantees uncompromised continuous 24/7 durability over decades of deployment.

• Manufacturer: Maxcess (Fife Brand Operational Group)
• Country of Origin: USA
• Product Category: Integrated Automatic Web Guiding and Steering System
• Product Line Portfolio: FIFE-500 Compact Series
• System Identification Number (Model): C000189-4944
• Technological Architecture: Electromechanical actuator unified with a high-speed digital PID processing core
• Supported Guiding Topologies: Edge Guiding (Single-edge tracking), Center Guiding (Web-center alignment), Line Guiding (Printed line tracking)
• Dynamic Correction Accuracy: Sub-millimeter tracking control, maintaining web drift parameters within < ±0.1 mm tolerances
• System Response Latency: Real-time data processing and immediate mechanical execution with near-zero latency
• Operator Interface (HMI): Color intuitive touch-screen display equipped with graphical system mimic diagnostics and ANSI alarm logging
• Integrated Network Gateways: High-speed internal CAN bus network linking with external industrial SCADA/BMS platforms
• Auxiliary Operational Supply: 24V DC stabilized industrial input required
• Internal Actuation Components: High-torque electric motor matrix paired with high-precision zero-backlash structural Ball Screw assemblies
• Chassis Carriage Composition: Heavy-duty rigid die-cast industrial aluminum alloy, impact-resistant and chemical-anodized
• Ingress Protection Rating: Rated to IP54 / IP65 standards against heavy manufacturing paper dust fiber ingress and fluid splashing
• Wiring Interfacing Architecture: Threaded circular industrial connectors engineered to handle continuous high-amplitude machinery oscillations
• Rated Operating Ambient Thermal Limits: 0°C to +60°C (Engineered for non-stop automated manufacturing runtime matrices)
• Supported Material Web Scope: Multi-axis load handling for industrial papers, plastic packaging films, PE/PP/PVC/PET foils, composite laminates, aluminum foils, non-woven fabrics, rubber substrates, and lithium battery electrode foils
