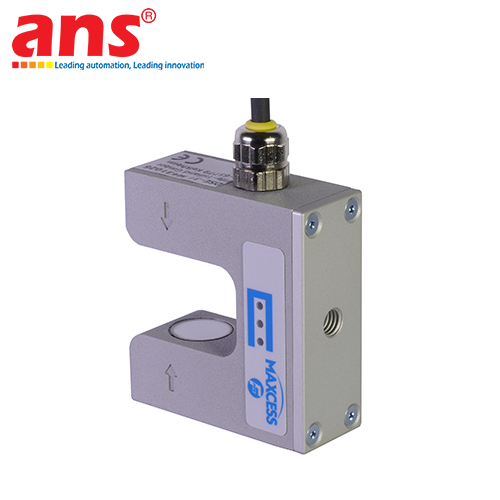

The Maxcess DSE-31 Digital Web Guiding Sensor (Part Number: M431026), engineered under the premier web processing portfolio of the Fife brand (a vital subsidiary under Maxcess Group - USA), represents a world-class sensing technology designed for heavy-duty material handling and advanced continuous converting industries. Inside high-speed rolling manufacturing structures handling multi-layer flexible packaging, rotogravure printing presses, lithium battery film coating, or technical woven textile processors, raw web materials traversing across roller arrays at hundreds of meters per minute are highly susceptible to sudden tracking drift or weaving deviations triggered by systemic mechanical tolerances, core misalignment, or web tension imbalances. Even minor edge variations measured in millimeters can severely compromise downstream production registration, resulting in color misalignment, open-edge laminate failures, or badly wound finished rolls that translate into steep material overhead wastage. The Maxcess DSE-31 digital sensor neutralizes this technical manufacturing vulnerability, executing constant, near real-time edge telemetry mapping to hold the web precisely on target.

The instrument operates via an embedded microprocessing digital core combined with advanced optical spectrum or high-frequency ultrasonic sensing technologies. This engineering layout allows the DSE-31 P/N: M431026 to project specialized scanning beams across its physical clearing gap, resolving the definitive boundary of the web material based on receiving light or signal energy attenuation curves. Distinguishing itself entirely from legacy analog sensors, the raw signal captured by the DSE-31 is fully digitized directly at the sensing head, yielding superior immunity against environmental plant disruptions such as surrounding facility LED light pollution, ambient sunshine rays, humidity drifts, abrasive dust accumulation, and extreme operating temperatures. The heavy-duty housing of the sensor is machined from high-impact structural aluminum alloy and treated with an industrialized chemical anodization matrix to afford full resilience against physical impacts, abrasive dust, and printing chemical solvents. Featuring an optimized profile paired with a thread-locking industrial circular connector, the DSE-31 mounts seamlessly onto standard Fife carriage configurations to communicate with central processing systems, ensuring flawless 24/7 continuous uptimes.

• Manufacturer: Maxcess (Fife Brand Group)
• Country of Origin: USA
• Product Category: Digital Industrial Web Edge Guiding Sensor
• Part Number (P/N): M431026
• Model Designation: DSE-31
• Measurement Core Architecture: High-speed digitized signal core with ambient environmental light filter immunity
• Auxiliary Operational Supply: 10 to 30V DC (Energized directly from the master web guide controller interface)
• Output Communication Protocol: Specialized digital packets fully compliant with standard Maxcess/Fife controller networks (CAN bus or linear output loops depending on variant)
• Proportional Measuring Range: Standard 15 mm to 25 mm measurement band (Determined by framework installation setups)
• Sensing Measurement Resolution: Sub-millimeter accuracy class, tracking material edge deviations down to < 0.1 mm
• Scanning Gap Clearance Width: Nominal 30 mm to 50 mm space (Allowing unhindered passage for undulating web layers with zero mechanical contact)
• Chassis Frame Composition: Heavy-duty die-cast industrial aluminum alloy, impact-resistant and chemical-anodized
• Ingress Protection Rating: Rated from IP54 up to IP65 industrial protection against fine paper dust and fluid splashing
• Termination Architecture: Rugged threaded industrial circular connector block engineered to handle continuous multi-axis machinery vibrations
• Rated Operating Ambient Temperature: 0°C to +60°C (Optimized for demanding non-stop converting facilities)
• Compatible Materials Scope: Industrial papers, thin plastic films, PE/PP/PVC foils, composite laminates, aluminum foils, non-woven textiles, thin rubber substrates, high-clarity transparent sheets, lithium battery electrodes
