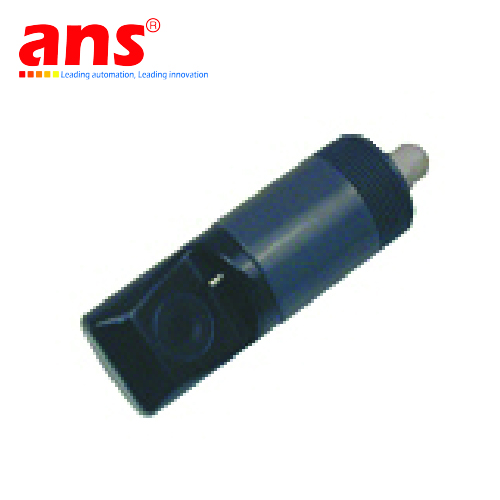

0911472255Oxygen sensor M10-33 10S Insite Ig Vietnam
The Model 10 Dissolved Oxygen Sensor incorporates optical fluorescent technology, solid state electronics, and a unique side mount element
- Our optical fluorescent technology provides increased dependability, no sensor caps, no routine calibration and no need for flow, because there is no oxygen consumption.
- The solid state electronics means no membranes, no fill solutions, and reliable digital communications up to 2000ft.
- Our side mount element increases impact protection and facilitates the integrated jet clean.
Our continuous DO sensors come standard with tool free ¼" O.D. tubing connectors for the integrated jet clean and 33ft (10m) of sensor communications cable. Additional cable length is available upon request.
Specifications
- Measuring Range: 0 to 25 ppm
- Accuracy: 1% of the reading or .05 ppm, whichever is greater
- Repeatability: 0.01 ppm
- Response Time: 95% in under 60 seconds
- Resolution: 0.01 ppm below 4.00, 0.1 ppm above 4.0
- Drift: less than 1% per year
- Temp. Range: 0°C to 60°C
- 1-½" MNPT mounting thread
- 33ft (10m) sensor cable
- ¼" O.D. tube connection for jet cleaning
