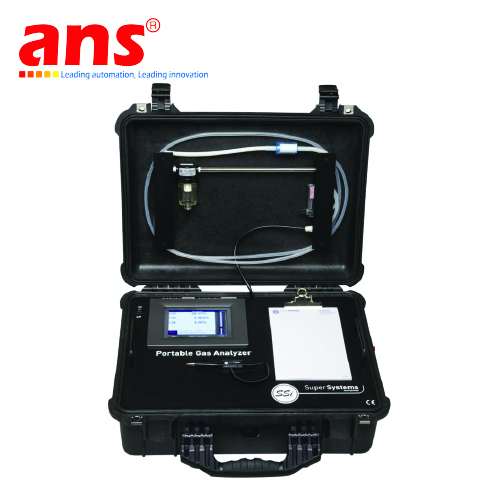

Portable Multi-Gas IR Analyzer 13544 Super System Vietnam

Basic Operating Description

The Model PGA 3510 has been designed for the simultaneous analysis of CO, CO2 and CH₄ in heat-treat furnace atmosphere gases. It uses a color touch screen display/ operator interface for data entry and for viewing. Selections can be made on the screen using a finger or a stylus. Avoid the use of sharp objects (pens, paperclips, screwdrivers, etc.) as they can cause permanent damage to the screen and void the warranty of the instrument.

After the power switch is turned on, it will take approximately 30 seconds for the PGA 3510 software to automatically load. Once the software is properly loaded, the instrument is ready to use. When the power switch is turned off, the PGA 3510 initiates a controlled shutdown procedure which takes about 15 seconds. Following the controlled shutdown, the instrument will completely turn off.

Hydrogen Cell Note:

• For highest H2 accuracy, it is recommended that the instrument be powered on for 60 minutes before measurements are taken.

Default Screen

• Once the PGA 3510 has successfully loaded its software, the default screen will be displayed.
