Oxygen Analyzer EN500 ENCEL Vietnam

OVERVIEW

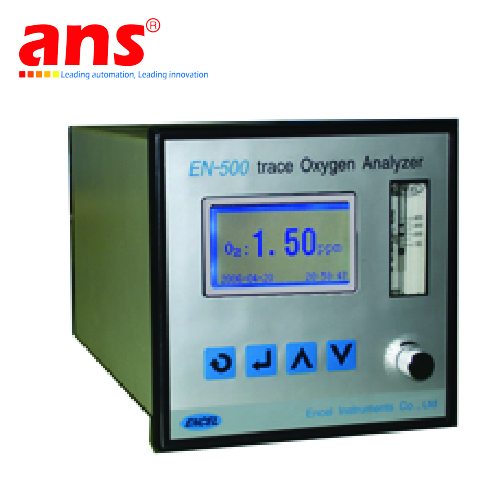

    EN-500 trace oxygen analyzer adopt high performance of electrochemical gas sensor and microprocessor technology. With LCD display and the functions of upper and lower limit alarm, standard signal output, as well as relay contact alarm output etc. It is used in continuously measuring trace oxygen in nitrogen, argon, helium and many other reducing gases such as hydrogen.

FEATURES

• Long-life, maintenance-free, Micro-fuel Cell oxygen sensor
• High accuracy and sensitivity ; fast response
• Unaffected by reducing gases such as hydrocarbons and other oxidizable gases
• Big LCD display, English or Chinese menu, with automatic diagnosis working status
• Automatic memory measured data and curve, with checking privious measured data
• One isolated, linearized 0~10 or 4~20mADC outputs
• Alarm relay, with upper or lower limit alarm point can be set within the full range
• With RS232 interface for measured data communication

SPECIFICATIONS

• Measured component：O2
• Measureing range：0~10/ 100/ 1000 ppm
• Linearity error：≤±2%FS (＞10 ppm) , ≤±5%FS ( ≤10 ppm)
• Resolution：0.01ppm
• Outline dimension：144 x 144 x 250mm (H x W x L)
