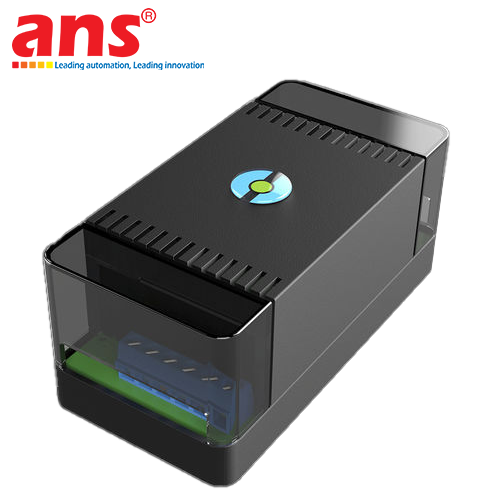

MAYR ROBA®-BRAKE-CHECKER SENSORLESS REAL-TIME INTELLIGENT MONITORING AND FAULT DIAGNOSTIC MODULE FOR SAFETY BRAKES

DEEP PRODUCT OVERVIEW & SENSORLESS CONTROL CABINET SAFETY MONITORING INFRASTRUCTURE
The Mayr ROBA®-brake-checker represents the global industry benchmark in specialized electro-mechanical power transmission telemetry engineering, configured as a high-precision intelligent monitoring module (Smart Brake Monitoring Module) running on advanced sensorless evaluation algorithms (Sensorless Technology) housed directly inside the master electrical control cabinet, developed and manufactured 100% in Germany by global market-leading safety brake pioneer Chr. Mayr GmbH + Co. KG. Moving completely away from legacy mechanical tracking loops that depend on physical microswitches or proximity sensor arrays fastened externally onto the brake housing at the active machine frame, the ROBA®-brake-checker functions entirely as a closed-loop electronic signature analyzer. By continuously parsing and processing real-time current and voltage waveforms delivered to the integrated electromagnetic coil pack, the module identifies sub-millimetric axial movement executed by the internal armature plate (Armature plate). The device functions as the ultimate edge-level "remote predictive diagnostic brain", specified to optimize shift safety parameters across industrial electromagnetic safety brakes (Safety brakes such as the ROBA-stop® series) running on hoist servomotors, crane winches, heavy automated elevators, wind turbines, and multi-axis articulated factory robot tracks, locking down uncompromised continuous plant runtime stability via localized distribution pipeline ANS.

UNCOMPROMISED SENSORLESS ANALYSIS MATRIX DEFEATING SEVERE FLOOR ENVIRONMENT DISRUPTIONS
The primary technical asset and core compliance advantage electing the ROBA®-brake-checker module for connected automation networks resides in its advanced coil profile evaluation physics:
- Total Isolation from Severe Field Degradation Parameters: Mounting proximity switches or mechanical limit devices directly onto a machine's active brake frame constantly exposes the telemetry loop to premature failure triggered by airborne metallic dust, aggressive cutting fluid washes, violent structural vibrations, or intense thermal energy bleeding from adjacent high-power motors. The ROBA®-brake-checker totally dissolves this physical risk profile by shifting the complete monitoring field over to the protected environment of the electrical cabinet. Tracking zero data wire links or external brackets at the brake location, the hardware achieves absolute shield-proofing backed by smart inductive flux analysis.
- Real-Time Armature Stroke Micro-Validation: By capturing fine inductance changes as the armature plate breaches micro air gaps, the solid-state circuit registers two primary operational states instantly: Brake completely released (Brake released profile) or brake firmly locked (Brake engaged state). Switching execution speeds are tracked in millisecond steps hằng ngày to maintain strict kinematic drive line visibility.

PREDICTIVE MAINTENANCE METRICS MATE WITH INTELLIGENT REMOTE WEAR RESERVE TELEMETRY
- Autonomous Wear Reserve Estimation (Predictive Maintenance Framework): As internal flat friction linings undergo unavoidable physical thickness reduction across prolonged 24/7 continuous operation shifts, the physical travel stroke of the armature plate expands. This elongation subtly alters the inductive charging signature of the magnet coil. The ROBA®-brake-checker dynamically calculates this shift variance to trigger an automated early alert indicating a depleted wear reserve limit (Wear limit reached parameters) long before the brake enters a compromised physical operating state. This empowers factory instrumentation crews to program hot-swap maintenance loops during scheduled shutdowns, removing expensive dynamic tool crashes or unpredicted facility downtime.
- Comprehensive Thermal Overload & Systemic Defect Diagnostics: The internal micro-evaluation loops perform automatic background diagnostic sweeps, instantly flagging severe line anomalies on the plant floor including: Electromagnetic coil short-circuiting, input power cable fracturing, supply voltage drop-induced thermal accumulation, or physical mechanical binding lockups obstructing armature displacement.

COMPACT SNAP-ON DIN RAIL INTEGRITY SECURING SEAMLESS INDUSTRIAL PLC INTERFACING
- Streamlined Low-Complexity Geometrical Profile: The hardware houses high-density diagnostic processing circuitry within a minimalist, robustly insulated structural housing module designed for instant tool-free snap-on attachment directly over standardized 35mm industrial rail configurations, saving vital control panel architecture space.
- Closed-Loop Industrial Master Controller Syncing: The ROBA®-brake-checker outputs clear digital binary status lines (Binary transistor outputs) or real-time continuous serial/analog data streams. The exact millisecond an overload or functional error triggers internal protection thresholds, the fault notification routes straight to central facility master PLC frameworks or supervisory SCADA telemetry networks to command a safe motor shutdown or lock automated heavy hoist brakes securely, tracking continuous long-term lifecycle performance supplied through certified ANS logistical channels.

DYNAMIC PROPULSION METROLOGY & ELECTRICAL PERFORMANCE DATA
- Equipment Manufacturer: Chr. Mayr GmbH + Co. KG (Germany)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Full System Part Number Certified: ROBA®-brake-checker Series
- Device Structural Profile: Cabinet-mounted sensorless intelligent safety brake status diagnostics and monitoring module.
- Application Assessment Topology: Precision real-time electromagnetic coil current and voltage curve characteristic evaluation (Coil current signature analysis).
- Ingress Tracking Hardware Baseline: 100% Sensorless configuration (Thoroughly eliminates external microswitches or field limit sensors at the brake frame).
- Input Logic System Voltage Rail: Industry-standard DC control voltage configurations (Standard metric: 24V DC).
- Coil Switching Current Boundary: Multi-tier scalable adaptive thresholds calibrated to process small capacity servo brakes up to high-current industrial safety magnets.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on targeted Mayr brake part numbers and operational current capacities)

TELEMETRY INTERCONNECT PROVISIONS & ERROR CHANNELS hiện trường
- Status Diagnostics Output Formatting: Integrated fast-acting digital binary transistor lines communicating explicit "Brake Open", "Brake Closed", and cumulative system "Error Fault" alerts.
- Advanced Analytics Output Protocol: Optional high-speed serial/analog telemetry channels routing detailed dynamic switching time charts straight to local workspace industrial computers.
- Automated Fault Diagnostics Matrix:
  + Pre-calibrated friction lining wear limit warning thresholds (Predictive maintenance wear reserve monitoring).
  + Inductive temperature threshold evaluation and coil thermal overload detection.
  + Continuous power loop verification detecting short-circuiting and open-circuit wire breaks.
  + Mechanical armature plate binding and physical travel blockage sensing.

STRUCTURAL METALLURGY & FIELD ASSEMBLY STANDARDS
- Control Panel Mounting Configuration: Integrated quick-snap mechanical locking tab matching standardized industrial 35mm DIN rail setups (DIN rail mounting layout).
- Enclosure Sealing Protection Class: Factory-rated under IP20 compliance indexes tailored for enclosed industrial control cabinet placement.
- Lubrication & Preventative Maintenance Mandate: Solid-state digital component array requiring zero physical fluid ingress; 100% Maintenance-free concerning field technical wear routines.
- Mechanical Production Origin: 100% Engineered and Manufactured in Germany (Germany Origin).
