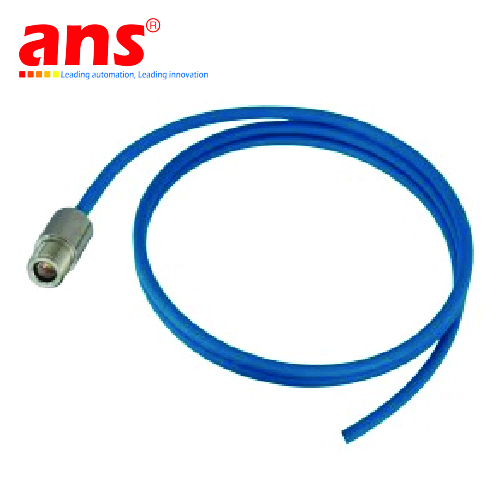

Raytek RAYMI31002MSF3 Fluke Process Instrument Vietnam

Raytek RAYMI31002MSF3 Offers

Ideal for high-volume OEM applications requiring top-quality performance with the best possible value and minimum installation costs, this non-contact miniature pyrometer allows calibrated digital temperature output directly from each sensor head. Furthermore, this short-wavelength sensor delivers more accurate measurements versus long-wavelength units in case of emissivity changes (metals or ceramics, for example).

Features

Monitoring edge temperature and drying uniformity for paper production results in higher yields and reduced downtime
Intrinsically safe infrared sensors for temperature measurement and monitoring in hazardous areas
From paint curing to thermoforming, non-contact temperature measurement provides consistent product quality in the automotive industry
Extended temperature range up to 2552°F (1400°C)
100:1, optical resolution
10 millisecond response time
Industrial rugged cable: Silicone and halogen-free, resistant against oil, bases, and acids
USB 2.0 interface as standard and selectable field busses
1M and 2M sensing heads are rated for a maximum ambient high temperature of 250°F (120°C)
Lowest installation costs per measurement point due to multiple sensing head system design
Self-diagnostic features: Break of a head wire, head internal temperature
Plug and play exchangeability for sensing heads (no heads parameter anymore, Raytek patent)
Robust EMI immunity due to digital head-to-box communication
No cable bending/moving effects, allowing continuous reliable measurement in moving installations (robotic arms, linear drives, chains, etc)
Optional network communication interfaces: RS485, Profibus, Modbus™, Ethernet, Profinet
65 MB data logger for communication boxes with Ethernet

MI3 - the world's smallest stand-alone pyrometer

Introducing an IR temperature sensor at the top of its class, this single-piece OEM version pyrometer sports a rugged IP65 stainless steel housing and integrated electronics that measure a wide range of temperatures. Furthermore, this IR sensor ensures long-term performance, even in harsh industrial environments with ambient temperatures up to 326°F (180°C) without cooling. Cooling accessories not only add installation costs, but they can also leak and contaminate products, or condensation produced by cooling can obscure the sensor's field of view and interfere with measurement accuracy.

Fast measurements

Infrared thermometers measure the energy radiated from an object, without touching it. This measurement technique is important in applications where contact would damage or alter the surface, such as a sheet of plastic film; or contaminate the product, such as food processing.

Unlike contact sensors, there is no delay while this infrared thermometer reaches the correct temperature. This makes it ideal for measuring moving or discrete processes. The result is fast, accurate non-contact measurement and tighter control of your process.

Process software

More features are available with the USB or optional RS485 communications and the DataTemp™ MultiDrop Software, including remote control monitoring of all sensor variables, an 8-position recipe table that easily interfaces to an external control system, and even external inputs for analog emissivity adjustment or reflected energy compensation.

Plot temperature values of multiple sensors simultaneously. High and low alarms are shown, making it easy to identify an out-of-range condition.
