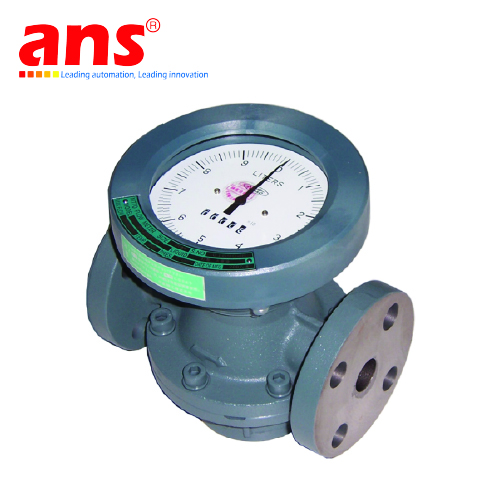

Rotary Flow Meter RA25ADD Nitto Seiko Vietnam
Price: Contact
Brand: Nitto Seiko
Category: Flow meter
Supplier: ansvietnam
Origin: Japan
0911472255Rotary Flow Meter RA25ADD Nitto Seiko Vietnam
Nitto Seiko Small Rotary Flow Meter – Compact, Precise, and Reliable
The Small Rotary Flow Meter (SSV10252) from Nitto Seiko is a compact and durable solution for precise liquid flow measurement. With its simple structure, high accuracy, and reliable performance, it is ideal for industries requiring consistent monitoring of liquids such as chemicals, food, beverages, fuel, and water.
⭐ Key Features
-
High accuracy with minimal variation due to liquid viscosity or temperature.
-
Low pressure loss, making it suitable for viscous liquids and light-load operations.
-
Compact and robust design, perfect for installations with limited space.
-
Flexible output options – can be equipped with pulse generators or reed switches for electronic integration.
| 100% Japan Origin | Nitto Seiko Vietnam | Model: RSA0040A0DDR53450010R FLOW METER | |
| MAIN ENGINE FLOW METER | |||
| SPECIFICATION (SAME AS S/NO. 0143450) | |||
| FLUID: HEAVY OIL (@380mPa.s) | |||
| FLOW RANGE: 300 - 3,500 L/H (ACCURACY: +-0.2%) | |||
| MAX. TEMP.: 100 DEG C | |||
| CONNECTION: 40A JIS 10K RF FLANGE (MAX. PRESSURE: 1.0 MPa) INDICATION: POINTER AND 6 DIGITS TOTALIZER (100L/ver) | |||
| C/W PROTECTION COVER | |||
| OUTPUT: 10L/P FROM REED SWITCH | |||
| MATERIAL | |||
| BODY AND MEASURING CHAMBER : FCD450 / ROTOR: AC COATING COLOR: GREEN | |||
| 2 | 100% Japan Origin | Nitto Seiko Vietnam | Model: RA25CDD FLOW METER |
| AUX ENGINE FLOW METER | |||
| SPECIFICATION (SAME AS S/NO. 0143451) | |||
| FLUID: HEAVY OIL (@700mPa.s) | |||
| FLOW RANGE: 100 - 600 L/H (ACCURACY: +-0.2%) | |||
| MAX. TEMP.: 100 DEG C | |||
| CONNECTION: 25A JIS 10K FF FLANGE (MAX. PRESSURE: 1.0 MPa) INDICATION: POINTER AND 5 DIGITS TOTALIZER | |||
| C/W PROTECTION COVER | |||
| OUTPUT: WITHOUT | |||
| MATERIAL | |||
| BODY AND MEASURING CHAMBER : FCD450 / ROTOR: AC COATING COLOR: GREEN | |||
| 3 | 100% Japan Origin | Nitto Seiko Vietnam | Model: RSA0080A0DD123450010R FLOW METER |
| AUX ENGINE FLOWMETER | |||
| SPECIFICATION | |||
| FLUID: HEAVY OIL (@380mPa.s) | |||
| FLOW RANGE: 750 - 17,000 L/H (ACCURACY: +-0.5%) | |||
| MAX. TEMP.: 100 DEG C | |||
| CONNECTION: 80A JIS 10K RF FLANGE (MAX. PRESSURE: 1.0 MPa) INDICATION: POINTER AND 6 DIGITS TOTALIZER | |||
| OUTPUT: WITHOUT | |||
| MATERIAL | |||
| BODY AND MEASURING CHAMBER : FCD450 / ROTOR: AC | |||
| 4 | 100% Japan Origin | Nitto Seiko Vietnam | MODEL: RSA0040B0DD120010010R FLOW METER |
| FLOW METER | |||
| SPECIFICATIONS (SAME AS S/NO. 0188941 - 0188942) | |||
| FLOW RANGE: 500 - 12,000 L/H (ACCURACY +-0.5%) | |||
| FLUID: HEAVY OIL A.C. (@20mPa.s) | |||
| MAX. TEMP.: 140 DEG C (COOLING FIN: SINGLE) | |||
| CONNECTION: 40A JIS 10K RF FLANGE (MAX. PRESSURE: 1.0MPa) | |||
| INDICATION: POINTER AND 6 DIGITS TOTALIZER | |||
| OUTPUT: WITHOUT | |||
| MATERIAL | |||
| BODY AND MEASURING CHAMBER: FCD450 / ROTOR: AC | |||
| COATING COLOR: MUNSELL 7.5BG7/2 | |||
| 5 | 100% Japan Origin | Nitto Seiko Vietnam | MODEL: RSA0025B0DD120010010F FLOW METER |
| FLOW METER | |||
| SPECIFICATIONS (SAME AS S/NO. 0188943 - 0188944) | |||
| FLOW RANGE: 200 - 5,000 L/H (ACCURACY +-0.5%) | |||
| FLUID: HEAVY OIL A.C. (@20mPa.s) | |||
| MAX. TEMP.: 140 DEG C (COOLING FIN: SINGLE) | |||
| CONNECTION: 25A JIS 10K FF FLANGE (MAX. PRESSURE: 1.0MPa) | |||
| INDICATION: POINTER AND 6 DIGITS TOTALIZER | |||
| OUTPUT: WITHOUT | |||
| MATERIAL | |||
| BODY AND MEASURING CHAMBER: FCD450 / ROTOR: AC | |||
| COATING COLOR: MUNSELL 7.5BG7/2 | |||
| 6 | 100% Japan Origin | Nitto Seiko Vietnam | MODEL: RA25ADD FLOW METER |
| FLOW METER | |||
| SPECIFICATIONS (SAME AS S/NO. 0188945) | |||
| FLOW RANGE: 100 - 1,600 L/H (ACCURACY +-0.5%) | |||
| FLUID: HEAVY OIL A. (@20mPa.s) | |||
| MAX. TEMP.: 80 DEG C | |||
| CONNECTION: 25A JIS 10K FF FLANGE (MAX. PRESSURE: 1.0MPa) | |||
| INDICATION: POINTER AND 5 DIGITS TOTALIZER | |||
| OUTPUT: WITHOUT | |||
| MATERIAL | |||
| BODY AND MEASURING CHAMBER: FCD450 / ROTOR: AC | |||
| COATING COLOR: MUNSELL 7.5BG7/2 | |||
| 7 | 100% Japan Origin | Nitto Seiko Vietnam | MODEL: RSA0040A0DD123450010R FLOW METER |
| FLOW METER | |||
| SPECIFICATIONS (SAME AS S/NO. 0188946) | |||
| FLOW RANGE: 200 - 5,000 L/H (ACCURACY +-0.5%) | |||
| FLUID: HEAVY OIL A.C. (@20mPa.s) | |||
| MAX. TEMP.: 100 DEG C | |||
| CONNECTION: 40A JIS 10K RF FLANGE (MAX. PRESSURE: 1.0MPa) | |||
| INDICATION: POINTER AND 6 DIGITS TOTALIZER | |||
| OUTPUT: WITHOUT | |||
| MATERIAL | |||
| BODY AND MEASURING CHAMBER: FCD450 / ROTOR: AC | |||
| COATING COLOR: MUNSELL 7.5BG7/2 |
