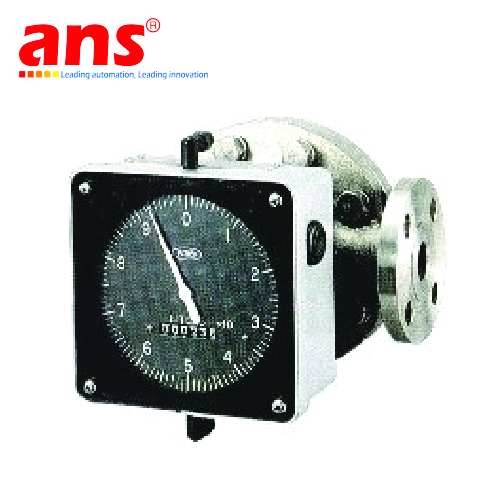

Rotary Flow Meter RSA0040A0DDR53450010R Nitto Seiko Vietnam

Nitto Seiko RS Rotary Flow Meter – Accurate & Durable Flow Measurement for Modern Industries

The RS Series Rotary Piston Flow Meter from Nitto Seiko (Japan) is engineered for applications requiring high accuracy, long service life, and reliable performance. Featuring an advanced design with ceramic shafts and PPS resin rotors, the RS Series ensures exceptional wear resistance and stability, even under demanding industrial conditions.

🔹 Key Advantages

✅ Outstanding durability – Ceramic shaft and PPS rotor provide excellent resistance to corrosion, abrasion, and high temperatures.
✅ High measurement accuracy – ±0.5% standard accuracy (or ±0.2% with premium models).
✅ Large flow, minimal pressure loss – Lower pressure drop compared to other displacement meters, ideal for high-viscosity liquids.
✅ Stable & reliable performance – Minimally affected by changes in temperature, viscosity, or flow fluctuations.
✅ User-friendly & easy integration – Clear mechanical display with optional pulse output for SCADA/PLC system connectivity.

🔹 Technical Specifications

• Connection size: DN25 – DN100 (25A – 100A)

• Viscosity range: 0.5 – 500 mPa·s (up to 30,000 mPa·s optional)

• Operating temperature: –20 °C to 200 °C (S2 high-temperature version)

• Maximum pressure: 2.0 MPa (depending on model & JIS/ANSI flange standard)

• Accuracy: ±0.5% / ±0.2%
