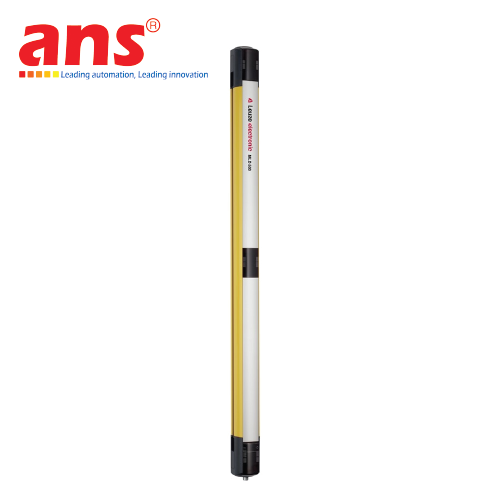

Safety device transceiver MLD510-RT3 Leuze Vietnam
Price: Contact
Brand: Leuze
Category: Safety & electric part (SE)
Supplier: ansvietnam
Origin: Germany
0911472255Safety device transceiver MLD510-RT3 Leuze Vietnam
The Leuze MLD510-RT3 is a premium multi-beam safety transceiver engineered to provide reliable, non-contact protection for hazardous machine areas. Designed for demanding industrial environments, this system ensures the highest level of safety performance, fast response, and seamless integration into modern automation platforms. It is the ideal solution for safeguarding operators, machinery, and production lines while maintaining uninterrupted workflow.
Key Features
Advanced Multi-Beam Safety Protection
Equipped with 3 infrared beams with 400 mm spacing, the MLD510-RT3 creates a robust safety field to prevent unauthorized access to hazardous zones such as robot cells, presses, automatic gates, and cutting systems.
Extended Detection Range
Provides a protective field of up to 6 meters, making it suitable for medium to large-scale production systems, conveyors, and complex automation areas.
Fast Response Time
With a reaction time of approximately 25 ms, the MLD510-RT3 ensures quick detection and immediate machine stoppage for maximum safety.
Safety-Certified OSSD Outputs
Features two PNP OSSD safety outputs, enabling direct connection to safety controllers, safety relays, or PLC-based safety systems.
Compliant With the Highest Global Safety Standards
-
Type 4 according to IEC/EN 61496
-
SIL 3 (IEC 61508 / IEC 62061)
-
Performance Level e / Category 4 (EN ISO 13849-1)
These certifications ensure it meets stringent safety requirements across industries worldwide.
Industrial-Grade Durability
-
Rugged metal housing
-
IP67 protection rating for dust and water resistance
-
Operating temperature from −30°C to +55°C
Built to withstand harsh factory conditions and continuous operation.
