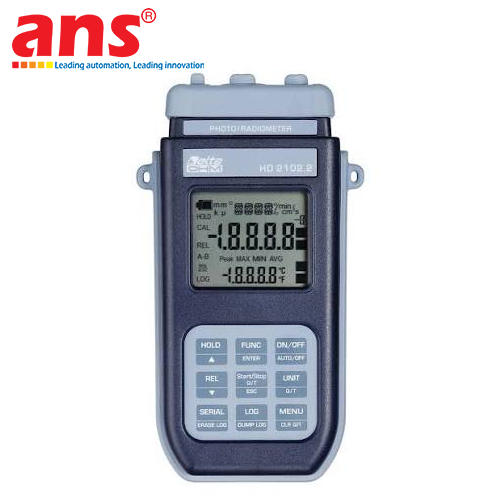

The Senseca HD2102.2 Photo-Radiometer Datalogger (developed within the internationally recognized Delta Ohm optical instrument range, part of the GHM Group Italy) is a high-precision, multi-purpose handheld measuring system designed for professional photometric and radiometric monitoring. It serves as an essential measurement workstation for environmental auditors, occupational hygiene inspectors, quality assurance laboratories, photochemical manufacturing plants, and horticultural research centers requiring rigorous assessment of light intensity, luminance, and spectral radiation.

1. MULTI-SPECTRAL RADIOMETRIC & PHOTOMETRIC VERSATILITY VIA SICRAM PROBES
The HD2102.2 instrument interfaces seamlessly with Delta Ohm's smart SICRAM interchangeable probe family (probes embedded with internal memory chips containing factory calibration data and automatic sensor recognition):
• Illuminance (Lux / Foot-candle): For workplace, architectural, and industrial illumination compliance audits.
• Luminance (cd/m² or foot-lambert): Designed for road lighting verification, display screen testing, and illuminated signage inspection.
• Ultraviolet Radiation (UVA, UVB, UVC): Measures spectral bands UVA (315 - 400 nm), UVB (280 - 315 nm), and germicidal UVC (200 - 280 nm) in W/m² or µW/cm² for sterilization validation and UV resin curing control.
• Photosynthetically Active Radiation (PAR): Quantum measurement in µmol/(m²·s) or photon flux, dedicated to greenhouse management and agricultural botany.
• Total Solar Irradiance and VIS-NIR spectral irradiance monitoring.

2. ADVANCED INTEGRAL ENERGY DOSE Q(t) & STATISTICAL FUNCTIONS
• Time-Integrated Dose Calculation Q(t): Automatically computes the time integral of the measured photometric/radiometric quantity [Q(t) = ∫ E·dt]. It quantifies the cumulative radiant energy or light exposure over time (Lux·s or J/m²), an indispensable metric for industrial UV curing lines, photobiological exposure safety, and microbiological disinfection testing.
• Live Statistical Processing: Computes and displays Maximum (MAX), Minimum (MIN), and Average (AVG) statistical metrics throughout any ongoing measurement session.

3. EXPANSIVE DATA LOGGING CAPACITY & REAL-TIME USB TRANSMISSION
• Heavy-Duty Memory Storage: Built-in datalogger capable of recording up to 38,000 samples when using single-parameter probes, or up to 14,000 samples with multi-parameter combined probes.
• Configurable Logging Intervals: Selectable sampling intervals ranging from 1 second to 1 hour.
• Real-time PC Streaming: Equipped with an isolated USB interface enabling live data acquisition onto a PC or batch downloading of stored data campaigns via the dedicated DeltaLog9 PC software suite.

4. COMPLETE FIELD-READY TURN-KEY PACKAGE
Supplied as a complete functional kit inside a rugged protective carrying case, including the HD2102.2 host instrument, comprehensive operating manual, 4 x 1.5V AA batteries for prolonged autonomy, and the CP23 USB interface cable.

• Manufacturer: Senseca (Delta Ohm / GHM Group)
• Model: HD2102.2
• Origin: Italy (100% Italy Origin)
• Product Category: Handheld Photo-Radiometer Datalogger
• Standard Inclusions: HD2102.2 host instrument, protective carrying case, user manual, 4 x 1.5V AA batteries, CP23 USB communication cable.

[DATA STORAGE & LOGGING CAPACITY]
• Memory Storage:
  - Up to 38,000 samples (single-parameter probes)
  - Up to 14,000 samples (combined multi-parameter probes)
• Logging Interval: User-selectable: 1, 5, 10, 15, 30 seconds, or 1, 2, 3, 4, 5, 10, 15, 20, 30 minutes, and 1 hour
• Mathematical Functions: Maximum (MAX), Minimum (MIN), Average (AVG), Time-integrated dose Q(t) = ∫ E·dt
• Integral Calculation Units: lux·s, cd·s/m², (µmol/(m²·s))·s, J/m² (dependent on attached probe type)

[HARDWARE INTERFACES & CONNECTIVITY]
• Display: Large dual LCD graphical display with configurable backlight
• Probe Input: 1 input port with 8-pole DIN connector supporting smart SICRAM technology
• PC Interface: USB digital serial output via CP23 cable
• Data Transfer Modes: Real-time live data streaming to PC or batch memory download via DeltaLog9 software suite

[POWER SUPPLY & OPERATING CONDITIONS]
• Power Supply: 4 x 1.5V AA alkaline batteries (approx. 200 hours continuous runtime with 1800mAh cells) or optional external 12Vdc power adapter
• Standby Current: < 20 µA when powered off
• Ingress Protection: IP66 (Dust-tight and resistant against high-pressure water jets)
• Operating Temperature: -5°C … +50°C
• Storage Temperature: -25°C … +65°C
• Operating Relative Humidity: 0 … 90% RH (non-condensing)
• Dimensions: 140 x 88 x 38 mm
• Weight: Approx. 160 g (excluding batteries and probes)

[OPTIONAL COMPATIBLE SICRAM OPTICAL PROBES]
• Illuminance Probe (LP471PHOT): Measuring range 0.10 … 200,000 Lux
• Luminance Probe (LP471LUM2): Measuring range 1.0 … 2,000,000 cd/m²
• UVA Radiometric Probe (LP471UVA): Spectral range 315 … 400 nm; Range 0.1·10⁻³ … 2,000 W/m²
• UVB Radiometric Probe (LP471UVB): Spectral range 280 … 315 nm; Range 0.1·10⁻³ … 2,000 W/m²
• UVC Radiometric Probe (LP471UVC): Spectral range 200 … 280 nm; Range 0.1·10⁻³ … 2,000 W/m²
• PAR Quantum Radiometric Probe (LP471PAR): Spectral range 400 … 700 nm; Range 0.10 … 10,000 µmol/(m²·s)
