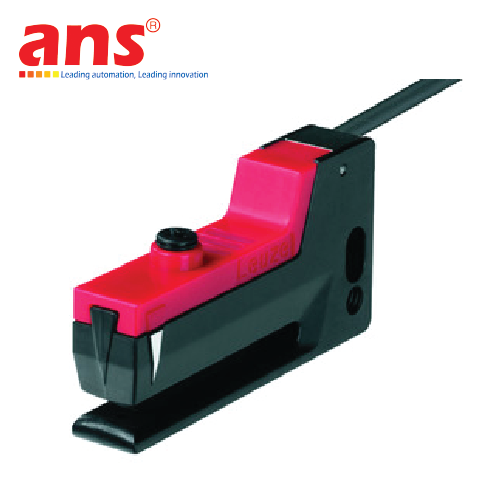

Leuze GS 61-6D.2 – Precision Fork Photoelectric Sensor for Label & Object Detection
The Leuze GS 61-6D.2 is a high-performance fork-type photoelectric sensor from the GS 61 series, designed for reliable and accurate detection of non-transparent labels and materials in industrial automation systems. Offering fast response times, adjustable teaching functionality, and robust operation in harsh environments, this sensor is ideal for packaging, material handling, and automated production lines.
🔍 Key Features
-
📏 Label Detection for Precision Control – Detects non-transparent labels with minimum width and gap of 2 mm each, enabling precise positioning and high-speed material tracking.
-
⚡ Fast Switching & Response Speed – Up to 10,000 Hz switching frequency with 0.05 ms response time, ideal for fast moving conveyor systems.
-
💡 Infrared LED Light Source (940 nm) – Durable and energy-efficient source for stable detection performance.
-
🔄 Teach-In Function & LED Indicators – Simplifies configuration and calibration for different materials and production settings.
-
📦 Built-In Push-Pull Transistor Output – Single digital output (max 100 mA) with a switching logic optimized for labels.
-
🔌 Wide Operating Voltage Range (10–30 V DC) – Compatible with standard machine automation systems.
-
🏭 Robust & Compact Fork Design – 3 mm mouth width, slim dimensions (11 × 30 × 60 mm), plastic housing, easy to mount directly at material edges.
-
🌡️ Industrial-Grade Durability & Protection – IP65 rating, operating temperature −20 °C to 60 °C, suitable for most factory environments.
✅ Benefits & Why Choose the GS 61-6D.2
-
🚀 High Precision & Repeatability: Maintain consistent label detection on fast conveyors, reducing material waste and increasing throughput.
-
⚙️ Easy Setup & Integration: Built-in teach button allows quick calibration to match material and application requirements.
-
📉 Reduced Downtime: Durable design and reliable detection reduce manual adjustments and machine stoppages.
-
📦 Flexible Industrial Use: Suitable for packaging, printing, textile, electronics, automotive, and general manufacturing industries.
