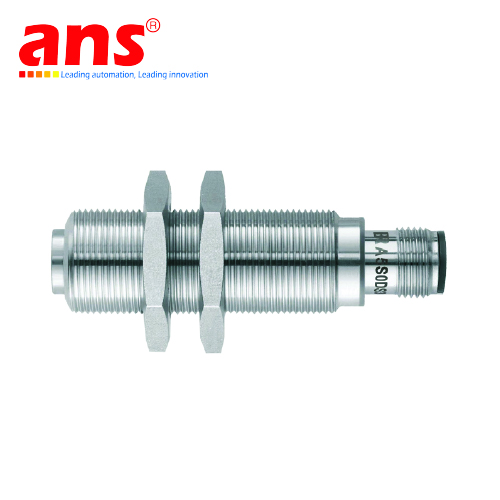

Speed Sensor A5S15-97002017 BRAUN Vietnam
Price: Contact
Brand: BRAUN Vietnam
Category: Sensors
Supplier: ansvietnam
Origin: USA
0911472255Speed Sensor A5S15-97002017 BRAUN Vietnam
Speed sensors for applications such as turbines, compressors, expanders etc. in nonhazardous areas. Safety classification up to SIL 3 / IEC 61508:2010 resp. EN ISO 13849-1:2015
PL e Kat. 4, EN ISO 13849-2:2012 PL e Kat. 4 and IEC 62061:2021; useable in applications up
to SILCL 3 as speed sensors.
Their low end of 0 Hz allows monitoring the machine down to zero speed. They are contact-free,
wear-free, maintenance-free and unsusceptible versus external magnetic stray fields and
machine vibration.
Sensors A5S0DD0 and A5S0DS0 and A5S0 for detection of rotational speed
Single Channel, the output provides the rotational speed as a single-track frequency signal.
Sensors A5S0DD3 and A5S0DS3 and A5S3 for detection of rotational speed and direction
of rotation
Dual Channel, 1 track = rotational speed as frequency, 1 track = F/R status as binary signal.
Sensors A5S0DD4 and A5S0DS4 and A5S4 for detection of rotational speed and direction
of rotation with two phase-shifted speed signals
Dual Channel, the output provides the rotational speed as a twin-track frequency signal (phase
shifted). Suitable for external direction detection with enhanced safety.
