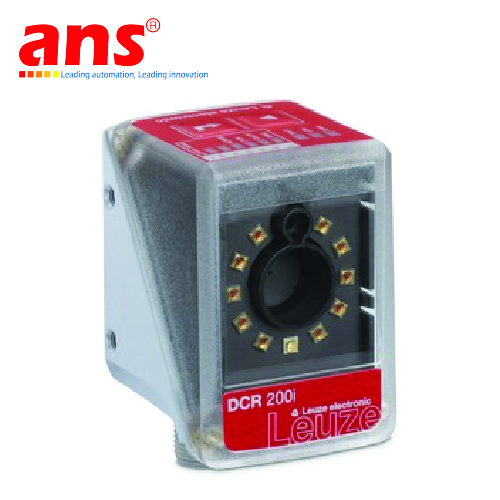

Stationary 2D-code reader DCR 202i FIX-N1-102-R3 Leuze Vietnam





Looking for a high-performance, compact, and reliable fixed-mount barcode reader? The Leuze DCR 202i FIX‑N1‑102‑R3 is engineered to meet the toughest demands of modern production and logistics environments. With CMOS sensor technology, a high-resolution optical system, and multi-protocol connectivity, this 2D code reader ensures accurate decoding of both 1D and 2D barcodes even at short distances.

🔧 Key Features and Specifications

  • Image Sensor: CMOS, 1280 × 960 pixels

  • Reading Range: Approx. 40 to 120 mm

  • Code Types: 1D (Code 128, Code 39, etc.), 2D (DataMatrix ECC200, QR Code, PDF417, etc.), GS1 DataBar

  • Minimum Resolution: 0.127 mm (5 mil)

  • Lighting: Integrated white LED

  • Protection Rating: IP65 (dust-tight, water-resistant)

  • Interfaces:

    • Ethernet TCP/IP, UDP

    • Serial (RS232, RS422)

    • PROFINET available on other variants

  • Operating Voltage: 18–30 VDC

  • Power Consumption: Approx. 8 W

  • Part Number: 50128782

  • Lens Type: N-optics (high-resolution fixed focus)



1

100%  Germany Origin

Leuze Vietnam

Code : DCR 202i FIX-N1-102-R3
2D/1D Barcode reader, Reading distance:40...120 mm, LED, Red, Camera
resolution, horizontal: 1,280 px, vertical: 960 px, 18 ... 30 VDC,, Ethernet, RS 232,
RS 422, M12 connector, Optics cover: Plastic, IP65

2

100%  Germany Origin

Leuze Vietnam

Code : KD S-M12-CA-P1-050
Connection cable, M12 12pin straight female black PUR 5M cable A-coded Shielded
IP67

3

100%  Germany Origin

Leuze Vietnam

Code : KSS ET-M12-4A-RJ45-A-P7-050
Interconnection cable Suitable for interface: Ethernet, M12, Axial, Male, D-coded,
4pin to RJ45, Shielded, 5M PUR green cable, IP 67 (M12), IP 20 (RJ 45)
