Tension Sensor JX-DT02 JIXIANG Vietnam





Suitable for any mechanical structure displacement detector, easy to install, convenient wiring, closed structure.

2K or 5KΩ displacement detector, 360-degree continuous rotation, suitable for any displacement detection or tension controller.

The installation dimensions are the same as the YTM-01 TSR-22 DT-02 on the market, but the installation space can be reduced by 1/3, that is, the side view size is 1/3 smaller, which is more convenient for installation in places with limited mechanical space!

Positioner: Imported from Japan

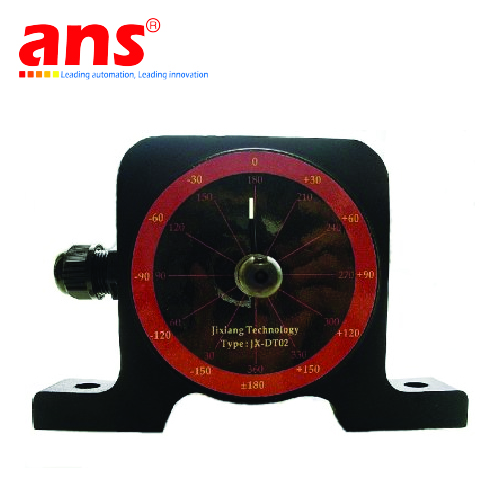

  • Model: JX-DT02
  • Product specifications: 2KΩ or 5KΩ
  • Power: 1W
  • Resistance tolerance: ±15%
  • Linear tolerance: ±1.5%
  • Life: 10 million revolutions (400r.p.m. no load, reverse every 15 minutes)
  • Resolution: infinite
