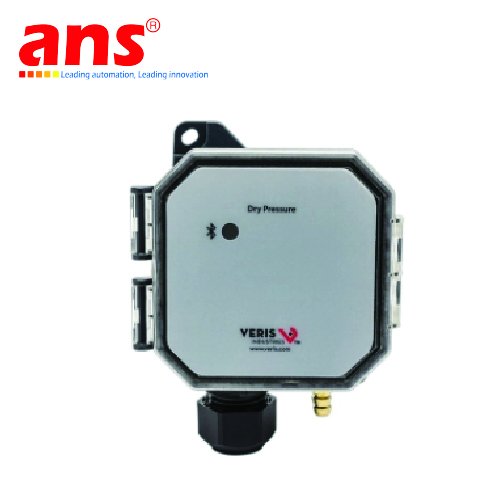

0911472255Veris PX3DXX02 Dry Differential Pressure Sensor Veris Vietnam
FEATURES
The PX3 transducer can measure either air pressure or velocity with the flip of a switch. PX3DXX02 is a Duct model with pressure and velocity of 1 to 10 in-WG/3000 to 6000 ft/min with four field-selectable subranges. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.
- Wireless configuration - view and configure all field selectable parameters via smartphone, no ladder necessary for duct mount applications
- High reliability sensor technology for long-term, maintenance-free operation
- Excellent tolerance to overpressure and vibration reduces field failures
- Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
- Circuit protection avoids damage due to incorrect input wiring
- Duct enclosure
- Uni-directional or bi-directional, DIP switch selectable modes
- Pushbutton auto-zero and digital input (2-position terminal block)
- For indoor or outdoor use
