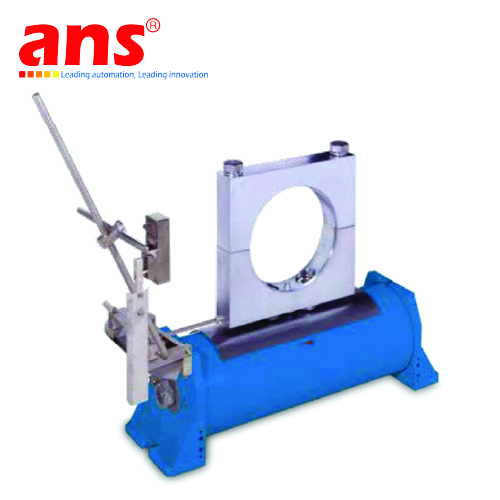

Web Guiding System SK 1602 T/N-00221137 Erhardt-leimer Vietnam





Your benefits

  •  Stable control during running
  •  Exact positioning of the clothing
  •  Longer service life for the clothing
  •  Reduced consumption of compressed air
  •  Robust design
  •  Excellent long-term temperature resistance compared to air bellows
  •  Uniform contact pressure of the scraper against the control roller achieved through linear adjustment movement

Function

  • Rollers that are angled in relation to the direction of fabric travel cause the fabric to drift sideways. Felt and wire guiding systems exploit this principle.
  • Here, the pivot point for the control roller is one of the two bearings at the ends. The control roller is positioned at an angle around this point
  • to suit the correction required. Mechanical or electrical regulating variable feedback delivers a stable control loop.
