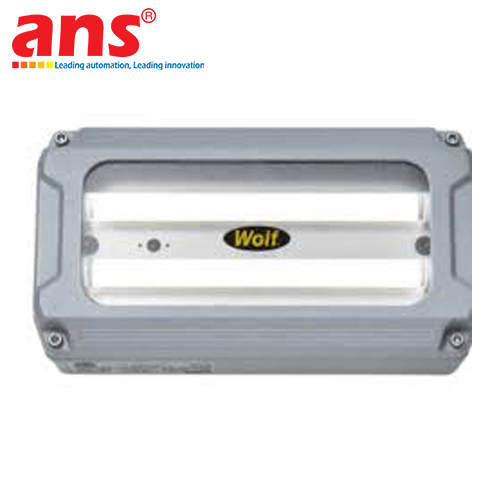

The Wolf LinkEx™ LBX Series LED Linear Luminaires (comprising models LBXS-L-59, LBXS-L-65, LBXE-L-59, and LBXN-L-59) represent an advanced generation of solid-state linear lighting instruments engineered and manufactured by Wolf Safety Lamp Company (United Kingdom)—the world’s premier authority in hazardous area safety illumination. Designed as a direct, high-efficiency replacement for traditional enclosed hazardous area fluorescent fittings, the LBX Series provides superior luminous flux, exceptional energy savings, and an extended operational lifespan. Holding full international explosion-proof certifications under ATEX and IECEx for Zone 1 and Zone 2 (Gas atmospheres) alongside Zone 21 and Zone 22 (Combustible Dust environments), these luminaires guarantee uncompromised worker protection across oil & gas, chemical, and marine processing facilities.

Functional breakdown and model designations:
- LBXS (Standard Version): High-output standard illumination fixture engineered for continuous operation in industrial walkways, plant bays, and storage vessels. (LBXS-L-59 rated for +59°C ambient, LBXS-L-65 rated for extreme ambient temperatures up to +65°C).
- LBXE (Emergency Version): Equipped with an integrated high-performance rechargeable emergency battery system. Upon mains power failure, internal intelligent management circuitry instantly engages battery backup to deliver continuous emergency lighting (up to 3 hours) for safe evacuation and critical emergency procedures. (LBXE-L-59 rated for +59°C ambient).
- LBXN (Non-Emergency / Extended Standard Version): Extended standard luminaire variant optimized for flexible daisy-chaining without internal emergency battery packs. (LBXN-L-59 rated for +59°C ambient).

Mechanically, the Wolf LinkEx™ LBX Series features a heavy-duty enclosure molded from high-impact anti-static engineering polymer that provides outstanding resistance to mechanical shocks and corrosive industrial chemicals. The anti-glare polycarbonate lens ensures smooth, uniform natural white light distribution that eliminates glare and reduces operator eye fatigue. Rated to IP66/IP67 ingress standards, the luminaires are dust-tight and high-pressure water-jet resistant. Featuring daisy-chain linkable interconnection capabilities and flexible voltage ratings (HV / LV), the Wolf LBX Series stands as an indispensable lighting infrastructure solution for offshore platforms, petrochemical refineries, shipyards, and heavy industrial maintenance overhauls worldwide.

• Manufacturer: Wolf Safety (Wolf Safety Lamp Company)
• Country of Origin: United Kingdom (UK)
• Product Line: LinkEx™ LBX ATEX LED Linear Luminaire Series
• Merged Model Portfolio:
  - LBXS-L-59: Standard Model / Max Ambient Temp +59°C
  - LBXS-L-65: Standard High Ambient Model / Max Ambient Temp +65°C
  - LBXE-L-59: Emergency Model with Battery Backup / Max Ambient Temp +59°C
  - LBXN-L-59: Non-Emergency Extended Model / Max Ambient Temp +59°C
• Hazardous Area Certifications: ATEX / IECEx Certified
• Applicable Zones: Zone 1 & Zone 2 (Gas), Zone 21 & Zone 22 (Dust)
• Explosion Protection Marking:
  - Gas: II 2 G Ex eb mb op is IIC T4 Gb
  - Dust: II 2 D Ex tb op is IIIC T135°C Db
• Light Source: High-efficiency solid-state linear LED array (> 100,000 hours lifespan)
• Total Light Output: Up to 3,000+ Lumens (Mains power operation)
• Emergency Battery Runtime (LBXE Model Only): Automatically maintains 1.5 to 3 hours illumination in Emergency Mode
• Ingress Protection Rating: IP66 / IP67 (Dust-tight and protected against powerful water jets)
• Supply Voltage Variants:
  - High Voltage (HV): 90V - 264V AC/DC (50/60Hz)
  - Extra Low Safety Voltage (LV): 18V - 54V AC/DC, 24V/48V
• Interconnection Capability (Linkable): Integrated ATEX-approved plug and socket system for daisy-chaining multiple luminaires
• Ambient Operating Temperature Range: -50°C to +59°C / +65°C (Model dependent)
• Enclosure Material: Heavy-duty anti-static engineering polymer (chemical & impact resistant)
• Lens Material: Anti-static toughened polycarbonate lens
• Compliant Standards: EN 60079, IEC 60079, RoHS, REACH
