The Wolf Safety Hazardous Area Ventilation Series (United Kingdom) comprises high-performance portable explosion-proof fans, industrial blowers, and compressed air-driven Venturi Air Movers specifically certified for hazardous, flammable, and confined workspace environments (Zone 1, Zone 2, Zone 21, Zone 22). Engineered with high-strength anti-static conductive polyethylene composite housings, these units entirely mitigate static discharge hazards. The portfolio accommodates both dual-voltage electric power inputs (115V / 230V) and 100% pneumatic air-driven configurations for environments where electric cables cannot be safely routed.

COMPLETE DIRECTORY OF 9 PRODUCT CODES IN THE VENTILATION RANGE:

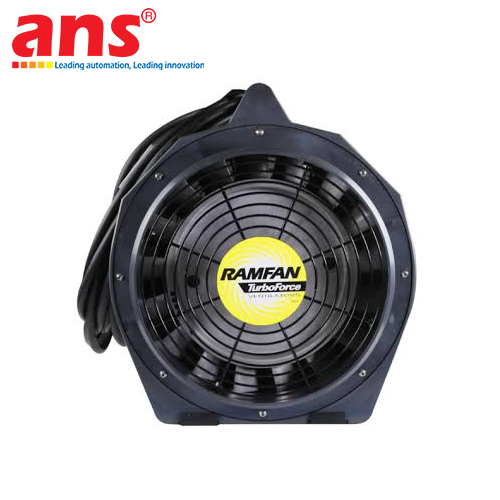

I. PORTABLE EXPLOSION-PROOF VENTILATOR FANS (UB SERIES):
1. Product Code: VF-UB20xx (115V)
- Product: Portable Explosion-Proof Ventilator Fan (115V)
- Details: Ultra-compact 20cm (8-inch) footprint with ergonomic carry handle. Operates on 115V industrial voltage with ATEX Zone 1/2 rating, perfect for rapid air delivery into tank manways.

2. Product Code: VF-UB20xx (230V)
- Product: Portable Explosion-Proof Ventilator Fan (230V)
- Details: Standard 230V AC configuration, robust anti-static seamless housing, dynamically balanced impeller minimizing acoustic noise while delivering high static pressure through long ducting runs.

II. HIGH-OUTPUT INDUSTRIAL ATEX BLOWERS (EFI SERIES):
3. Product Code: VF-EFi75xx (115V)
- Product: High-Output Industrial ATEX Blower Fan (115V)
- Details: 30cm (12-inch) diameter with a 0.75HP explosion-proof motor on 115V supply. Sturdy stackable square frame providing massive airflow for large-scale fume extraction.

4. Product Code: VF-EFi75xx (230V)
- Product: High-Output Industrial ATEX Blower Fan (230V)
- Details: Powered by 0.75HP motor on 230V AC mains, corrosion-proof and chemical-resistant housing, fully certified to stringent European ATEX explosion-proof directives.

5. Product Code: VF-EFi150xx (115V)
- Product: High-Volume Explosion-Proof Exhaust Blower (115V)
- Details: Heavy-duty 40cm (16-inch) fan powered by a 1.5HP high-torque motor on 115V. Capable of driving airflow through tens of meters of spiral ducting in ship cargo holds.

6. Product Code: VF-EFi150xx (230V)
- Product: High-Volume Explosion-Proof Exhaust Blower (230V)
- Details: 1.5HP motor with 230V supply delivering maximum CFM airflow for emergency vapor clearance, chemical plants, and oil refinery turnarounds.

III. COMPRESSED-AIR VENTURI AIR MOVERS:
7. Product Code: VF-RV760S
- Product: Anti-Static Venturi Cone Air Mover
- Details: Built with conductive anti-static polymer diffuser cone. 100% compressed air powered with zero electrical components, eliminating spark risks inside fuel tanks.

8. Product Code: VF-RV760
- Product: Venturi Compressed Air Mover
- Details: Standard Venturi cone air amplifier with corrosion-resistant body. Converts high-velocity compressed air into a massive volume of induced ambient airflow.

9. Product Code: VF-RV1500
- Product: Large-Capacity Venturi Air Mover
- Details: Extra-large pneumatic Venturi unit engineered for ventilating massive storage silos, crude oil carrier tanks, and distillation columns with zero risk of static spark ignition.

• Manufacturer: Wolf Safety Lamp Company Ltd
• Origin: United Kingdom
• Explosion-Proof Certification: ATEX / IECEx Certified
• Hazardous Area Classification: Zone 1, Zone 2 (Gas/Vapours) & Zone 21, Zone 22 (Combustible Dusts)
• Series Classification:
  - VF-UB20xx Portable Fans: 20cm (8") diameter | Flameproof motor | 115V / 230V AC
  - VF-EFi75xx Industrial Blowers: 30cm (12") diameter | 0.75HP motor | 115V / 230V AC
  - VF-EFi150xx High-Volume Blowers: 40cm (16") diameter | 1.5HP motor | 115V / 230V AC
  - VF-RV Series Venturi Air Movers: VF-RV760S (Conductive cone), VF-RV760, VF-RV1500 | Pneumatic operating pressure: 2.8 – 9.6 bar
• Housing Construction: Conductive Anti-static High-Density Polyethylene / Spark-proof marine-grade aluminium
• Durability & Ingress Protection: UV-resistant, chemical-resistant, IP55 / IP65 rated electric motor
• Ducting Compatibility: Quick-fit connection collars for anti-static flexible spiral ducting
• Temperature Class: T6 / T4
• Typical Applications: Confined space fresh air delivery, oil & gas tank cleaning, petrochemical refineries, chemical processing, marine shipbuilding, and paint spray exhaust.
