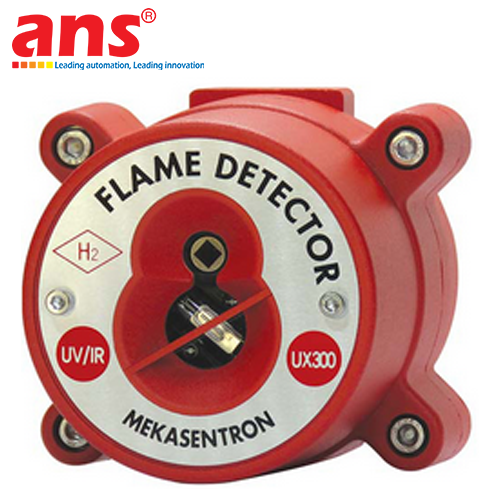

The Mekasentron UX300 Hydrogen Long-Range Optical Flame Detector is an advanced, high-performance ultraviolet and infrared combined flame detection device engineered and manufactured by Mekasentron Inc. (Korea). The detector is specifically configured to overcome the most demanding safety challenge in modern hydrogen energy infrastructure: the rapid, long-distance detection of invisible Hydrogen ($H_2$) flames. Hydrogen combustion produces zero smoke, no carbon particulates, and virtually no visible light, rendering standard optical sensors and human observers blind to daylight hydrogen fire outbreaks.

The operating architecture of the UX300 Hydrogen combines a solar-blind narrow-band Ultraviolet (UV) sensor with a specialized Infrared (IR) sensor tuned to the thermal emission bands of superheated water vapor generated during hydrogen combustion ($2H_2 + O_2 \rightarrow 2H_2O$). An upgraded 32-bit Digital Signal Processor (DSP) executes real-time spectral cross-correlation and optical flicker frequency analysis. This dual-verification algorithm provides complete immunity against non-fire optical interference such as direct sunlight, industrial arc welding, high-intensity halogen lighting, lightning discharges, and hot machinery radiation.

The UX300 Hydrogen model extends the guaranteed detection distance to 30 meters for standard hydrogen gas flames and n-Heptane pan fires across an expansive 90° horizontal and vertical conical Field of View (FOV), with a swift response time of under 5 seconds. This extended reach allows broader spatial monitoring in large hydrogen storage yards, compressor rooms, and production skids, enabling immediate emergency shut-off of upstream hydrogen isolation valves and initiating automated fire extinguishing systems before combustion escalates into structural damage or high-pressure vapor cloud explosions.

Mechanically, the UX300 Hydrogen is enclosed in a heavy-duty die-cast aluminium housing with an epoxy powder-coated finish (optional SUS316 Stainless Steel), achieving IP66/IP67 ingress protection ratings across an ambient operating temperature range of -40°C to +75°C. With hazardous area classifications of Ex db IIC T6 Gb and Ex db IIB+H2 T6 Gb (ATEX, IECEx certified), it is approved for continuous deployment in Zone 1 and Zone 2 explosive hydrogen gas atmospheres. Equipped with Form A Fire Alarm relays, Form B Fault Alarm relays, and an industrial RS-485 Modbus RTU serial interface, it integrates into building fire alarm control panels or industrial SCADA/DCS automation networks.

• Manufacturer: Mekasentron Inc. (Korea)
• Product Series: Dedicated Long-Range Hydrogen UV/IR Explosion-Proof Flame Detectors
• Model: UX300 Hydrogen
• Sensing Principle: Dual Spectral Response (Solar-Blind Ultraviolet & Infrared sensors)
• Monitored Hazards: Hydrogen (H2) gas fires and Hydrocarbon-based fires (Gasoline, Diesel, n-Heptane, Alcohol, LPG/LNG, Chemical Solvents)
• Detection Range: 30 meters for standard Hydrogen and n-Heptane test fires (0.1 m² pan fire)
• Field of View (FOV): 90° horizontal × 90° vertical (Maximum coverage up to 100° ~ 120°)
• Response Characteristics: Typical under 5 seconds (< 5s)
• Explosion-Proof Classifications:
  - Ex db IIC T6 Gb, IP66/67 (ATEX)
  - Ex db IIB+H2 T6 Gb, IP66 (ATEX, IECEx, NEPSI)
  - Ex tb IIIC T85ºC Db, IP66/67 (ATEX)
• Ingress Protection Rating: IP66 / IP67
• Operating Voltage: Nominal DC 24V (Range: 18V to 30V DC)
• Power Consumption: Operating current ~100mA / Maximum power ≤ 3W (@24V DC)
• Relay Outputs:
  - Fire Alarm Relay: Form A (Normally open NO), latching, rated 2A @ 30V DC
  - Fault Alarm Relay: Form B (Normally closed NC), normally energized, rated 2A @ 30V DC
• Digital Interface: RS-485 Serial Communication (Modbus RTU compatible)
• Electromagnetic Compatibility: High-immunity industrial EMC protection
• Dimensions (W x H x D): 94 mm x 96 mm x 105 mm
• Conduit Entry Size: M20 × 1.5 mm (Optional 1/2" NPT)
• Recommended Wiring: Shielded twisted-pair cable 14 AWG to 24 AWG
• Enclosure Material: Heavy-duty Die-Cast Aluminium with Epoxy Coating (Optional: SUS316 Stainless Steel)
• Shipping Weight: Approx. 1.4 kg (SUS316 version: ~3.2 kg)
• Operating Temperature Range: -40 °C to +75 °C
• Operating Humidity Range: 0% to 95% Relative Humidity (non-condensing)
• Quality Approvals & Certifications: ATEX, IECEx, KFI, KGS, NEPSI, CE, RoHS compliant
