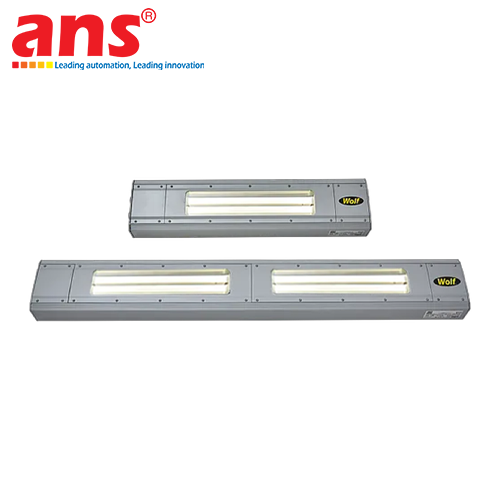

The Wolf LinkEx™ LMX2S Series LED Matrix Luminaires (comprising models LMX2S-L-50 and LMX2S-L-60) represent a state-of-the-art wide-area hazardous location lighting solution engineered and manufactured by Wolf Safety Lamp Company (United Kingdom)—the world’s premier authority in explosion-proof safety illumination. Holding full international safety certifications under ATEX and IECEx for Zone 1 and Zone 2 (Gas atmospheres) alongside Zone 21 and Zone 22 (Combustible Dust environments), these luminaires guarantee uncompromised worker protection across volatile industrial sectors.

Model variations and configuration options:
- LMX2S-L-50: Standard length matrix luminaire, offering an optimal balance between luminous coverage and maneuverability in compact or confined entryways.
- LMX2S-L-60: Extended length high-output variant, featuring an expanded solid-state LED matrix array for maximal area illumination across large storage tanks and industrial turnaround sites.

Optical and mechanical highlights:
Built with premium solid-state LED chips, the Wolf LinkEx™ LMX2S-L-50 & LMX2S-L-60 deliver a uniform, glare-free, natural white light beam that minimizes eye fatigue while illuminating dark vessel interiors. The housing is molded from heavy-duty anti-static engineering polymer that delivers exceptional resistance against mechanical impacts, aggressive chemicals, and UV degradation. The optical matrix is protected by a scratch-resistant toughened glass or polycarbonate lens, integrated with proprietary thermal management to extend LED service life beyond 100,000 operational hours. Rated to IP66/IP67 ingress protection standards, the luminaires are dust-tight and water-jet resistant. Featuring linkable interconnectivity and flexible supply voltages (High Voltage and Low Voltage variants), the Wolf LMX2S Series is an essential asset for offshore oil rigs, petrochemical plants, marine shipyards, and heavy industrial maintenance services globally.

• Manufacturer: Wolf Safety (Wolf Safety Lamp Company)
• Country of Origin: United Kingdom (UK)
• Product Line: LinkEx™ LMX2S ATEX LED Matrix Luminaire Series
• Merged Model Portfolio:
  - LMX2S-L-50: Standard Matrix Luminaire Model
  - LMX2S-L-60: Extended High-Output Matrix Luminaire Model
• Hazardous Area Certifications: ATEX / IECEx Certified
• Applicable Zones: Zone 1 & Zone 2 (Gas), Zone 21 & Zone 22 (Dust)
• Explosion Protection Marking:
  - Gas: II 2 G Ex eb mb op is IIC T4 Gb
  - Dust: II 2 D Ex tb op is IIIC T135°C Db
• Light Source: High-efficiency solid-state LED matrix array (> 100,000 hours lifespan)
• Total Light Output: Up to 4,000+ Lumens (Model variant dependent)
• Ingress Protection Rating: IP66 / IP67 (Dust-tight and protected against powerful water jets)
• Supply Voltage Variants:
  - High Voltage (HV): 90V - 264V AC/DC (50/60Hz)
  - Low Voltage (LV): 18V - 54V AC/DC, 24V/48V
• Interconnection Capability (Linkable): Integrated ATEX-approved plug and socket system for daisy-chaining multiple luminaires
• Ambient Operating Temperature: -20°C to +55°C
• Enclosure Material: Heavy-duty anti-static engineering polymer (chemical & impact resistant)
• Lens Material: Toughened anti-glare scratch-resistant polycarbonate / glass
• Compliant Standards: EN 60079, IEC 60079, RoHS, REACH
• Mounting Options: Suspension hooks, scaffolding clamps, high-pull magnetic brackets
