Apollo ORB-MB-50018-APO (Orbis Intrinsically Safe Product Portfolio)

Product Overview: The Apollo ORB-MB-50018-APO conventional intrinsically safe detector base (frequently labeled as ORB-MB-50018-AP on high-risk job sites) is a premium process-grade fire safety infrastructure component belonging to the globally acclaimed Orbis I.S. family, engineered and manufactured 100 percent in the United Kingdom by Apollo Fire Detectors (UK / EU Origin). Within severe processing complexes, offshore crude extraction facilities, chemical processing yards, or the engine rooms of commercial vessels experiencing continuous mechanical stress, the detector base serves as the core physical and electrical anchoring plane.

It safely handles and routes all low-energy communication current loops scaling from Orbis intrinsically safe optical smoke heads (such as the ORB-OP-52028-APO model), heat sensors (ORB-HT Series), or advanced multi-sensor nodes back to remote supervisory PLC systems or conventional fire alarm zoning panels.

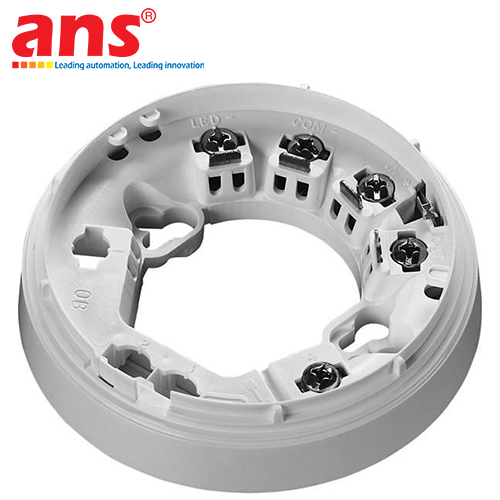

The Mechatronic Breakthrough of TimeSaver® Base Layout Engineering: The hallmark technical parameter driving the exceptional market position of the ORB-MB-50018-APO variant focuses on its factory certified TimeSaver® Base architecture. Apollo designed this mounting frame specifically to resolve field installation overheads, slashing cabling runtime and scaling down testing latencies for industrial electrical crews through integrated structural hardware mechanisms:

• Expanded Open Workspace Footprint: The central section of the circular base is engineered with an extensive cutout clearing, yielding a wide open workspace. This layout allows installers to smoothly feed and manage dense insulated wiring cores, rigid multi-conductor cables, or armored instrumentation loops without risking pin pinch, insulation abrasion, or mechanical conductor fatigue when fastening the base shell to industrial surfaces.

• Logically Grouped Terminal Blocks: The wire binding screw terminal nodes are not spread out randomly across the diameter but are clustered tightly into specialized functional grouping zones. This grouping assists field technicians to instantaneously distinguish incoming utility supply loops, outgoing serial lines, and auxiliary indicator leads, completely mitigating polarity crossover faults and avoiding field short-circuit damages.

• High-Visibility LED Alignment Mark Matrix: The exterior plastic molding includes a crisp, physical alignment marking notch that mirrors the final orientation of the active detector's diagnostic status LED. During large-scale system deployments, crews simply align this notch to a common compass heading. This guarantees that once the Orbis detector head is twisted home, every status light across an extensive line or warehouse bay faces the identical path, improving plant floor aesthetic uniformity and speeding up visual scannable checks.

🛠️ HARDENED TELEMETRY TERMINALS & SECURITY INTERFACE TAB:

• Standardized Conductor Pin Allocation Map: The heavy-duty terminal block sorts 7 individual high-clamping screw grids mapped according to the following layout: IN+ and IN- pins capture incoming zone circuit power; OUT+ and OUT- pins continue the line further along the zone loop path; the LED- port links the return current path for external remote room indicator lamps; COM- acts as the common loop baseline; and the Functional Earth (Screen) gland captures the braided instrumentation cable shield to discharge structural static build-up safely. This mechatronic path configuration allows central supervisory frames to maintain active loop continuity checks even if individual sensor heads are temporarily detached from the terminal footprint.

• Anti-Tamper Detector Locking Mechanism: The mounting frame incorporates a ruggedized, pre-loaded mechanical lock catch tab. When this anti-vandal lock is engaged, the twisted-in Orbis smoke or heat head becomes mechanically constrained against counter-rotation. To detach the detector head for routine chamber calibration, technicians must insert a precise mini tool tip into a hidden access slot along the collar. This entirely blocks unauthorized personnel or plant floor vibration fields from loosening the sensor, stabilizing continuous facility runtime matrices.

Severe-Duty Mechanical Hardening and Ingress Specifications: Forming the structural foundation of the Orbis Intrinsically Safe array, the ORB-MB-50018-APO base is optimized to mesh flawlessly with energy-limiting intrinsically safe barriers (such as Zener barriers or galvanic isolators), ensuring total compliance with global ATEX, IECEx, and Ex ia Zone 0, Zone 1, and Zone 2 explosive atmosphere protection guidelines. The hardware profiles a compact outline showing an outer diameter of 100 mm, an overall height profile of 42 mm, and a net hardware mass of roughly 80 grams, molded from premium structural Polycarbonate composite resin engineered for fire-retardant heat deflection and uncompromised dielectric safety.

The structural housing complies with strict international design criteria verified by premier global ship registries and fire protection labs, capturing official approvals from IECEx, LPCB, Marine Equipment Directive (MED), DNV, Bureau Veritas (BV), Lloyd's Register (LR), and ABS. It operates with absolute structural consistency over an extended process thermal envelope scaling from minus 40 up to plus 70 degrees Celsius and handles relative humidity fields from 0 up to 98 percent RH non-condensing, backed by an extensive 10-year factory warranty run from the UK.
