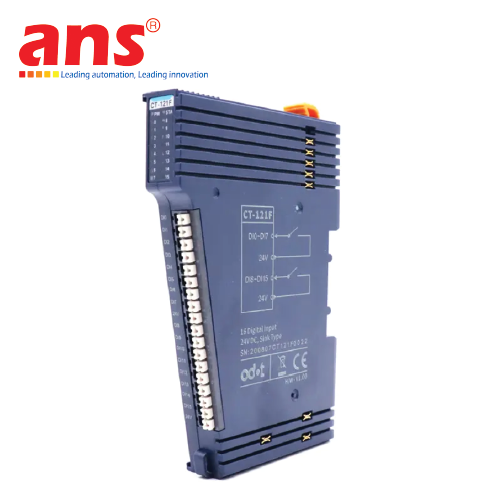

Channel I/O Converter CT-121F ODOT Vietnam
Price: Contact
Brand: Odot
Category: 4.0 Industry
Supplier: ansvietnam
Origin: China
0911472255Channel I/O Converter CT-121F ODOT Vietnam
Product Details 1. Module Type 2. State indicator 3. Channel indicator 4. Wiring Terminal and identification 5. Internal Bus 6. Field Power 7. Buckle 8. Grounding Resilient Sheet 9. Fixed Wiring Harness Technical Parameters General parameters Power Consumption: Max.60mA@5.0Vdc Isolation: I/O to internal bus: opto-couple isolation (3KVrms) Field Power: Nominal:24Vdc, Range:19.2-28.8Vdc Wiring: Max.1.5mm² (AWG 16) Mounting Type: 35mm DIN-Rail Size: 115*14*75mm Weight: 65g Environment Specification Operational Temperature: -35~70℃ Operational Humidity: 5%-95% (No Condensation) Protection Class: IP20 Input parameters Channel Number: 16 channel sink input LED Indicator: 16 channel input LED indicator Turn-on voltage: Min.10Vdc to Max.28Vdc Turn-off Voltage: Max.5Vdc Turn-on current: Max.5mA/channel@28V input impedance: >7.5kΩ Input delay OFF to ON: Max.3ms ON to OFF: Max.2ms filter time Default: 10ms Sample frequency: 500Hz Counter frequency: <200Hz Application
