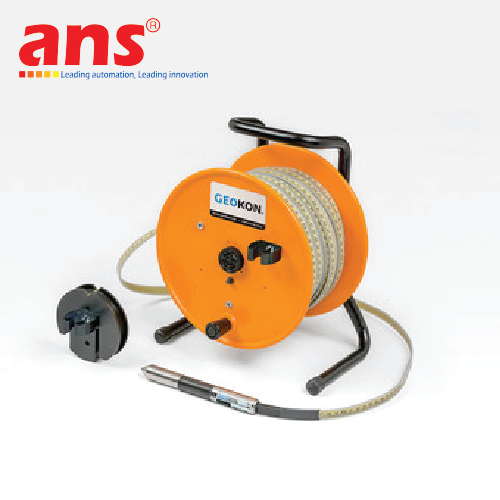

Magnetic Extensometers 1900-11-50M GEOKON Vietnam
Price: Contact
Brand: Geokon Vietnam
Category: 4.0 Industry
Supplier: ansvietnam
Origin: USA
0911472255Magnetic Extensometers 1900-11-50M GEOKON Vietnam
The Model 1900 Magnetic Extensometer is designed to measure settlement or heave of soft ground under the influence of loading or unloading due to the construction of embankments, fills, buildings, foundations, and structures. A probe is lowered inside a telescoping guide tube to detect and measure the position of magnetic anchors located around the guide tube at various depths along the borehole or within the fill. Plate anchors are used in fill and “spider” anchors in boreholes.
Specifications
- Cable Lengths30, 50, 100, 150, 200 m; 100, 125, 200, 300 ft
- Resolution1 mm
- Repeatability±3 mm
- Temperature Range−30°C to +80°C
- Borehole Size102 to 216 mm
- Probe Dimensions (L × Ø)178 × 19 mm
