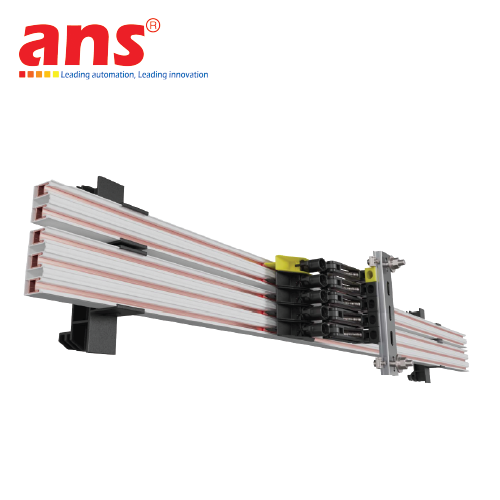

Compact current collector VCL2 0144607/01 VAHLE Vietnam
Price: Contact
Brand: Vahle
Category: 4.0 Industry
Supplier: ansvietnam
Origin: EU
0911472255Compact current collector VCL2 0144607/01 VAHLE Vietnam
GENERAL
The two-pole compact conductor system VCL2 was developed specifical-ly for various intralogistics applications. With its compact size and dura-bility, the VCL2 possesses the ideal properties for small parts warehouse shuttle applications or for other transfer carriages. Additionally, installing VCL2 is simple due to minimal parts and an easy clip-fastening system.
SAFETY
The compact conductor system, VCL2, has been designed according to VDE 0100. It complies with current conductor system safety require-ments and is protected against accidental contact according to VDE 0470, part 1 (protection class IP 2X).
The current collectors are protected against contact only if the carbon brushes are fully located in the conductor rails. For conductor rail sys-tems located at arm's length, where under normal operation the current collectors leave the conductor rails, contact protection must be provided on site, e. g. by means of barriers or by switching off. This, however, only applies to voltages above 25 volts AC or 60 volts DC.
Fig. 1 shows that the VDE finger cannot touch live parts. The insulation rail covering the conductor rail offers good insulation for maximum safe-ty. Any number of conductors can be installed side by side at minimum space requirement.
Standard rail sections are 4 m long, but short-er sections are available. The ground conduc-tor is yellow, marked with a continuous green stripe at the insulating housing.
