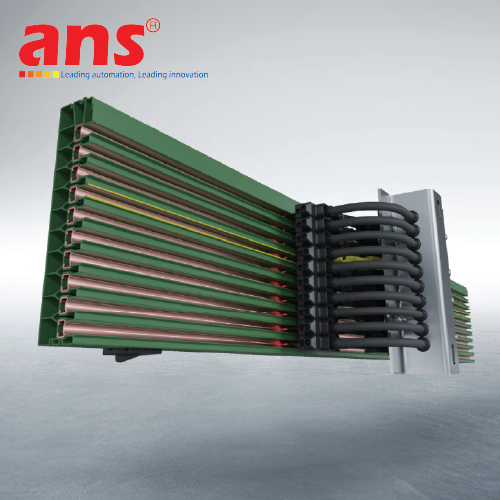

Compact current collector VKS10 0143277/00 VAHLE Vietnam
Price: Contact
Brand: Vahle
Category: 4.0 Industry
Supplier: ansvietnam
Origin: EU
0911472255Compact current collector VKS10 0143277/00 VAHLE Vietnam
Sections
The insulated housing accommodates up to max. 10 conductors and provides reliable insulation. The standard length is 6m, shorter lengths can be supplied. The ground conductor rail is identified with continuous yellow marking. The asymmetric design eliminates the possibility of reversing the phases during installation. One fixpoint hanger is required for each conductor section.
Joints
The insulated housing sections are connected with joint caps. The conductors are joined with copper plug-in connectors.
Feeds
Feed units can be supplied as end or line feeds with plastic terminal boxes or as especially flat line feeds for direct single core cable connection. Both line feed types are supplied preassembled on a 1m conductor rail section. The end feeds are supplied loose and can only be used in conjunction with the VLS line feed.
Hangers
All sections must be fastened at least twice and the maximum distance between suspension points must not exceed 1.2 m. The hangers are available for the following mounting options:
1. VAHLE support profile (self-locking)
2. C-rail (bolted type)
3. Plain surface (bolted type)
