Connectivity BCC0LR0 BCC M418-0000-1A-133-PS0825-250 Balluff

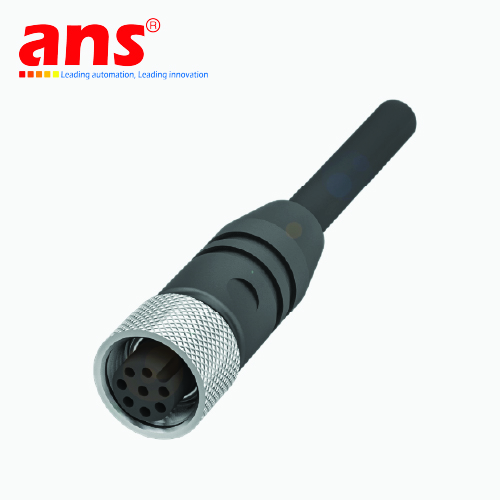

Balluff BCC0LR0 – Rugged M12 8-pin Single-Ended Cordset, IP68 Rated

The Balluff BCC0LR0 is a high-quality single-ended cordset designed with a straight female M12x1 connector (A-coded, 8-pin) and a durable 25 m PUR cable. Built for industrial automation, this cordset ensures reliable signal and power transmission in demanding environments, making it ideal for sensors, actuators, and I/O modules.

🔧 Key Features

• Connector: Straight female M12, 8-pin, A-coded.

• Cable: 25 m, black PUR, shielded, drag-chain compatible.

• Conductors: 8 x 0.25 mm².

• Rated Voltage & Current: Up to 36 VDC / 30 VAC, 2.0 A at 40 °C.

• Temperature Range: –40 °C to +90 °C (fixed routing), –5 °C to +90 °C (flexible routing).

• Protection Class: IP68, ensuring resistance to dust, water, and harsh industrial conditions.

✅ Why Choose Balluff BCC0LR0?

• Reliable Connectivity: 8-pin M12 interface supports efficient signal and power transmission.

• Durability: PUR jacket with IP68 protection guarantees performance in harsh, wet, or dusty environments.

• Flexible Installation: Drag-chain compatibility allows use in applications with continuous motion and cable routing.

• Industrial Compatibility: Suitable for sensors, transmitters, and I/O systems across a wide range of automation setups.
