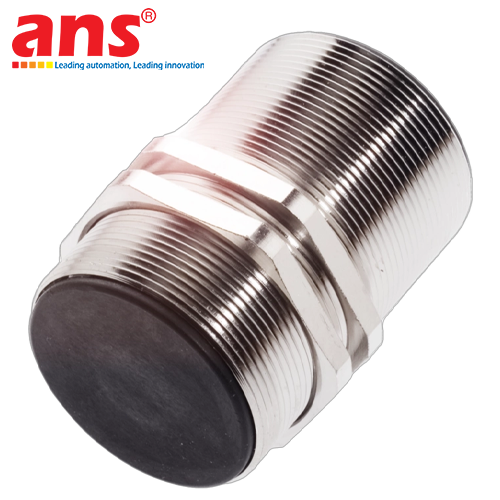

The Balluff Model BAW MKZ471.19-S4 Inductive Distance Sensor (Order Code: BAW003M), engineered and manufactured by Balluff GmbH in Neuhausen a.d.F., Germany, is a high-precision analog sensing instrument designed for non-contact distance and displacement measurement of metallic targets.

Unlike conventional digital inductive proximity switches that output simple ON/OFF binary states, the BAW003M continuously evaluates the physical gap between the sensor face and the metallic target, outputting a linearized 0 to 10 VDC analog voltage signal proportional to the measured distance. This enables PLC and automation controllers to monitor fine positioning tolerances, detect mechanical runout, and track wear trends in real time without physical contact.

Key Engineering Features & Operational Advantages:
- Non-Contact & Wear-Free Measurement: Operates on high-frequency electromagnetic induction, eliminating mechanical friction, wear, and mechanical backlash. It guarantees millions of measuring cycles with stable repeatability.
- Standard 0 - 10 V Analog Voltage Output: Delivers a smooth, linearized analog output voltage directly proportional to target displacement, enabling plug-and-play integration with analog input modules across Siemens, Rockwell Allen-Bradley, Mitsubishi, and Omron controllers.
- Compact Block Style Form Factor: The rectangular block profile minimizes installation space requirements, allowing straightforward integration into compact dies, robotic end-effectors, machining tool posts, and inspection jigs.
- High Industrial EMC Immunity & Robustness: Features integrated reverse polarity protection, output short-circuit protection, and transient suppression. Rated to IP67 ingress protection, the sensor operates reliably in aggressive environments exposed to metal shavings, industrial coolants, and machine lubricants.
- Standardized M12 Quick Disconnect (S4): Equipped with an industry-standard 4-pin M12 male connector, ensuring rapid field cabling, easy sensor replacement, and vibration-proof electrical connection.

Target Industrial Sectors & Applications:
- Machine Tool & Precision Engineering: Spindle runout detection, tool clamp/unclamp verification, and linear slide position feedback on CNC milling and turning centers.
- Metal Stamping & Plastic Injection Molding: Mold position feedback, press ram stroke monitoring, and sheet metal feed alignment.
- Automotive & Robotics: Body-in-white gap measurement, sheet metal deformation inspection, and robotic welding fixture clamping confirmation.
- Electronics & Semiconductor Assembly: Precision positioning of test fixtures (JIGs), lead frame alignment, and PCB height profiling.
- Packaging & Metal Stamping Automation: Double-sheet detection and metal strip loop control.

• Manufacturer: Balluff (Balluff GmbH)
• Country of Origin: 100% Germany (Made in Germany)
• Product Line: BAW Series Inductive Distance Sensors
• Order Code: BAW003M
• Part / Model Designation: BAW MKZ471.19-S4
• Sensing Principle: Non-contact Inductive distance measurement
• Output Signal Type: Linearized Analog Voltage (0 to 10 VDC)
• Active Measuring Range: 0.5 mm to 2.0 mm (target and material dependent)
• Repeat Accuracy: ±10 µm (or ±1% of Full Scale)
• Non-Linearity: ±3% of measuring span
• Dynamic Response / Sampling Rate: High bandwidth (~500 Hz), suitable for fast-moving targets
• Operating Voltage: 15 to 30 VDC (reverse polarity protected)
• No-Load Current Consumption: ≤ 20 mA @ 24 VDC
• Minimum Load Resistance: ≥ 2,000 Ω (2 kΩ)
• Mechanical Mounting: Flush mountable
• Housing Construction: Heavy-duty metal / nickel-plated brass with high-grade engineering plastic sensing face
• Electrical Interface: Standard 4-pin M12 male connector (M12x1, S4 designation)
• Diagnostic Status: Integrated LED indicator for power and operating state
• Ingress Protection Rating: IP67 compliant with EN 60529 (dust-tight and temporary immersion resistant)
• Operating Ambient Temperature: -10°C to +70°C (+14°F to +158°F)
• Vibration Resistance: 55 Hz, 1 mm amplitude, 3x30 min per IEC 60068-2-6
• Shock Resistance: 30g, 11 ms duration per IEC 60068-2-27
• Regulatory Approvals: CE, cULus, RoHS, EAC, WEEE compliant.
