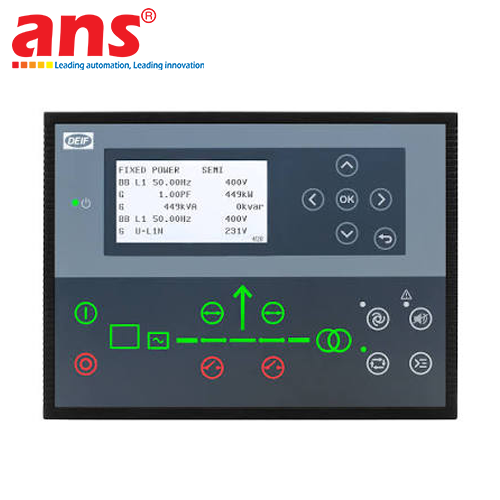

The DEIF AGC 150 Remote Display (AGC 150 RD) represents a premium-grade, highly specialized remote access and industrial control instrument engineered and manufactured by DEIF Group (Denmark). In modern power management and automated electrical distribution switchboards optimized for Tier-compliant Data Centers, massive industrial plants, or ocean-going vessels, primary master controller hardware blocks are systematically enclosed deep inside internal low or medium voltage compartmentalized breaker cubes. While this design layout maximizes electrical insulation barriers and streamlines signal cable routing to machinery, it compromises operator convenience and poses severe systemic arc-flash hazards whenever field engineers require real-time parameter tracking or urgent setup modulation. The AGC 150 Remote Display completely neutralizes this industrial vulnerability, serving as a synchronized Full HMI Mirroring interface that interfaces with the master controller via a high-speed internal CAN bus network across extensive panel-to-switchgear distances.

The instrument is built with a front facade composition that is 100% identical to the primary master AGC 150 controller unit. This integration comprises the identical high-contrast graphical LCD screen, full menu navigation keys, Auto/Manual operation mode selectors, tactile breaker close/open pushbuttons, and clear single-line mimic status LED lines. Consequently, switchgear operators can execute operations immediately without needing any supplementary technical training courses; all remote directives—ranging from backup genset emergency cranking and bus-tie breaker tripping to alarm acknowledgments and calibration adjustments—are registered and transmitted in real-time with near-zero latency. The front display layout achieves an environmental protection rating of IP65 when flush-mounted onto panel doors, enclosed in a robust Thermorphic polymer body engineered to handle extreme industrial thermal ranges while satisfying UL 94 V-0 self-extinguishing safety criteria. Bearing full marine type approvals from top-tier maritime classification bodies (such as DNV-GL, ABS, LR, BV), the AGC 150 Remote Display delivers premium operational redundancy, maximizing field safety parameters and plant resilience.

• Manufacturer: DEIF
• Country of Origin: Denmark
• Product Type: Remote Access and Control HMI Unit for Switchboards
• Model Designation: AGC 150 Remote Display (AGC 150 RD)
• Master Device Compatibility: Fully compatible across the entire DEIF AGC 150 controller matrix (AGC 150 Generator, AGC 150 Mains, AGC 150 BTB, AGC 150 Hybrid units)
• Operational Core Function: Full Human-Machine Interface Mirroring (Mirrors graphical readouts, status LEDs, and tactile command pushbuttons from the master controller)
• Communication Interfacing Protocol: Dedicated high-speed CAN bus network line, delivering instantaneous real-time telemetry updates
• Maximum Physical Connection Distance: Exceeding 200 meters (depending heavily upon specifying commercial-grade double-shielded CAN bus twisted-pair cables)
• Integrated LCD Module: High-contrast backlit monochrome graphical LCD projecting real-time dynamic single-line mimic diagrams, system metrics, and technical multi-language text packages
• Front Tactile Control Matrix: High-durability industrial rubber buttons supporting Crank/Stop commands, Alarm Acknowledge keys, Auto/Manual selectors, and direct independent circuit breaker control signaling
• Auxiliary Power Supply Input: Broad 8V to 36V DC range (Can be energized via separate localized battery distribution lines or shared directly from the master AGC 150 module)
• Environmental Ingress Rating: IP65 for front visual facade (when flush panel-mounted using structural tight-fit sealing gasket), IP20 for rear wire cages conforming to IEC 60529
• Housing Structural Material: Heavy-duty Thermoplastic engineering molding, high-impact resistant, self-extinguishing complying with UL 94 V-0 codes
• Panel Mounting Footprint: Standard DIN dimension cutout profile at 220 x 160 mm, ultra-slim depth profile to maximize internal panel space utilization
• Standards & Marine Type Approvals: CE marked, UL listed for industrial applications, Marine Type Approved by DNV-GL, American Bureau of Shipping (ABS), Lloyd's Register (LR), Bureau Veritas (BV), RINA
