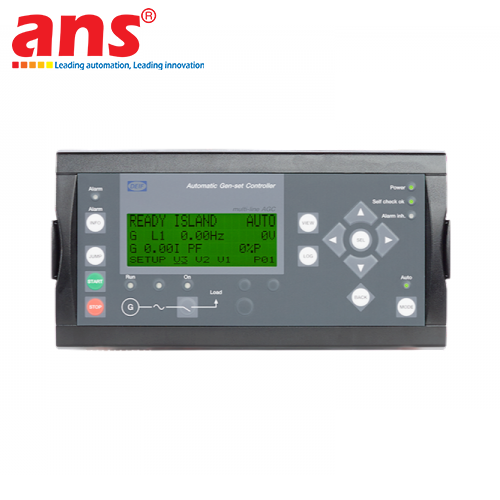

The DEIF AGC Steam (Advanced Genset Controller for Steam Turbines) represents a premium-grade, highly sophisticated utility automation platform engineered and manufactured by DEIF Group (Denmark), purposefully tailored to satisfy the most stringent operational and protection codes governing steam turbine-driven generator aggregates. Within conventional thermal power stations, decentralized Combined Heat and Power (CHP) networks, or heavy industrial waste heat recovery blocks, steam turbines operate under volatile continuous parameters defined by high mechanical pressures, extreme thermal loads, and rapid angular velocities. Any localized fault regarding steam flow modulation or sudden grid frequency oscillations can trigger catastrophic mechanical Overspeed anomalies, permanently fracturing rotor assemblies and turbine blading. The AGC Steam controller functions as the overarching processing core, continuously executing advanced digital Speed Governing algorithms and complex Extraction/Admission pressure loop modulations via electronic throttle servo valves to lock turbine runs within peak thermodynamic efficiency zones under absolute safety parameters.

The system stands out by providing comprehensive Automated Startup and Warming Sequences, strictly managing the initial thermal stress build-up cross-checked on the turbine casing and main shaft before permitting acceleration towards nominal operating RPM baselines. Once the turbine assembly reaches stable runtime equilibrium, the AGC Steam automatically triggers its integrated auto-synchronization and Synch-Check (25) verification loops to couple the alternator onto national utility grids or isolated captive busbars with zero electrical transient impact. Leveraging deep integration with DEIF's legendary Power Management System (PMS) mesh networks via high-speed inter-controller CAN bus lines, the device seamlessly coordinates with adjacent mains or generator control blocks to execute automated active power (kW) load sharing, peak load clipping, or automated emergency load shedding scripts. The graphical HMI panel layout projects dynamic single-line mimic diagrams overlaid with real-time True RMS electrical metrics alongside live steam temperature and pressure curves. Encased in a ruggedized heavy-duty framework built to endure severe multi-axis mechanical vibration and massive electromagnetic interference (EMI) typical of turbine halls, the AGC Steam ensures uncompromised uptime and systemic reliability.

• Manufacturer: DEIF
• Country of Origin: Denmark
• Product Category: Advanced Steam Turbine Control & Protection System
• Model Designation: AGC Steam
• Governing System Capability: Integrated high-speed Digital Governor executing direct regulation loops for electronic steam throttle valves or hydraulic servo actuators
• Pressure Control Logic: Native management loops tailored for Inlet steam pressure, Extraction steam pressure, and Exhaust/Condenser backpressure lines
• User Interface Elements: Backlit monochrome graphical LCD portraying dynamic active turbine system mimic diagrams and technical multi-language text strings
• Communication Interfaces: 2x CAN bus networks (dedicated for internal PMS inter-unit links), 1x Modbus RS485 serial port for centralized SCADA/DCS plant interfacing, 1x Ethernet RJ45 port, 1x front-mounted USB maintenance terminal
• AC Voltage Measuring Scope: True RMS nominal 100V to 690V AC direct inputs (Measurement Accuracy Class 0.5); Current sensing via external CT secondary ratings (x/1A or x/5A)
• Grid Frequency Sensing Range: Nominal 30 to 70 Hz (Sensing Accuracy Class 0.1)
• Hardware I/O Matrix: 12 digital inputs, 12 programmable dry-contact relay outputs, 4 multi-functional analog inputs designed for PT100 bearing temperature arrays or 4-20mA pressure transmitters
• Alternator & Turbine Protection Suites (ANSI Codes):
  - Independent Electronic Overspeed Protection (12)
  - Overcurrent / Active & Reactive Power Overload Monitoring (50/51, 32)
  - Turbine Reverse Power Protection (32R)
  - Under/Over Voltage (27/59) & Under/Over Frequency (81O/81U)
  - Phase Sync-Check Phase Verification (25)
• Auxiliary Operating Supply Input: Broad 8V to 36V DC range (Grid brown-out proof architecture)
• Environmental Protection Ingress: IP65 for front visual panel face (when panel-mounted utilizing standard tight-fit sealing gasket), IP20 for rear wire cages
• Quality Compliance Marks: CE marked, UL industrial listed, fully compliant with international thermal power plant engineering design specifications
