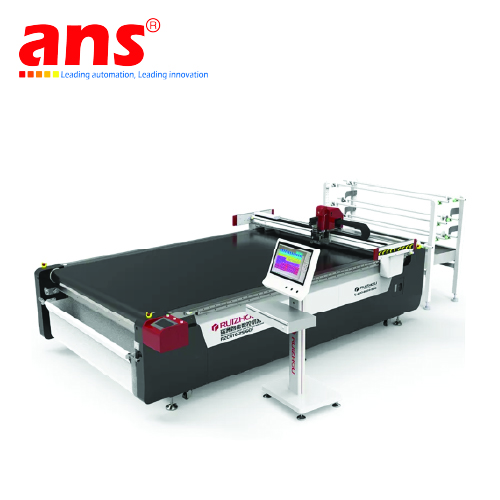

Dieless CNC Cutting Machine RZCRT6-3016EF RUIZHOU Vietnam





🛠 Ruizhou Dieless CNC Cutting Machine for Cardboard

Model RZCRT5-2516EF – High-Speed, Precision Cutting & Creasing

The Ruizhou RZCRT5-2516EF is a fully computerized, dieless CNC cutter tailor-made for high-precision box sample making and small-volume production in the packaging industry. Built on a rugged honeycomb-structure aluminum platform, it delivers fast, smooth, and versatile cutting—without burning, distortion, or material waste

✅ Why Choose Ruizhou RZCRT5-2516EF?

  • Robust & Stable Build: Honeycomb-structured solid aluminum table ensures durability, corrosion resistance, sound absorption, and thermal insulation—perfect for long-term industrial use.

  • Hot-Swappable Cutting Tools: Change between oscillating knife, mill cutter, creasing wheel, V-groove cutter, punching tool, or marking pen quickly to suit various materials—from cardboard, honeycomb, greyboard to PVC and composites.

  • Outstanding Accuracy & Surface Finish: Cutting precision from 0.1 mm to 1.0 mm, mechanical resolution 0.07 mm, software resolution up to 0.01 mm. Complex and irregular cutting paths are executed cleanly—often beyond the capabilities of laser or manual cutting methods.

  • High-Speed & Flexible: Cuts at 100–1200 mm/s, with a maximum sheet thickness from 0.1 mm up to 50 mm (depending on material).

  • User-Friendly Operation: Comes with Ruizhou’s own CNC control software compatible with HP-GL/GP-GL. The system supports CAD files (DXF, PLT) and auto nesting. Full-color touch display with vacuum substrate hold-down system.

  • Optional Auto Feeding: Models like the RZCRT5-2516EF include a built-in feeder for continuous production, ideal for medium-volume packaging lines.
