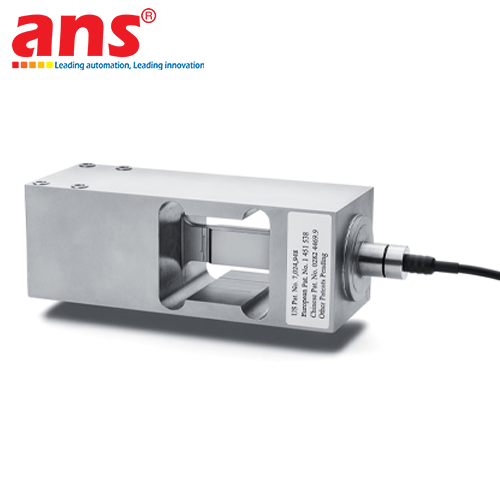

Eilersen XBL / XBL-Ex Digital Capacitive Load Cell Series
Price: Contact
Brand: Eilersen Vietnam
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: Denmark
0911472255The Eilersen XBL series (standard industrial Non-ATEX configurations) and XBL-Ex series (intrinsically safe explosion-proof variants accredited under severe international ATEX/IECEx directives) represent a premier lineup of digital load cells meticulously engineered and constructed in Denmark by Eilersen Electric. Completely bypassing conventional strain-gauge technologies—which are inherently susceptible to micro-structural deformations under excessive stress limits and frequently experience zero-point calibration drifts due to insulation aging caused by moisture ingress—the XBL/XBL-Ex architecture operates utilizing Eilersen's proprietary patented digital capacitive sensing principle. This mechanism measures infinitesimal alteration in electrical gap dimensions between internal capacitive plates under applied loads without demanding substantial physical structural flexing. Consequently, Eilersen XBL/XBL-Ex load cells possess unmatched mechanical durability, withstand safe overloads up to 1000% of their nominal rated capacity, and exhibit exceptional resistance against extreme side-loads, torsional stresses, and dynamic shock impacts without sustaining functional hardware damage or calibration inaccuracies.
Regarding hardware architecture, the entire sensor enclosure of the XBL/XBL-Ex series is precision-machined from a single block of high-purity, heavy-duty stainless steel alloy and hermetically sealed utilizing advanced robotic laser-welding to attain maximum environmental ingress ratings of IP68 and IP69K. The instruments are entirely impervious to deep water submersion, high-pressure hot steam clean-in-place (CIP) washdowns, acidic chemical atmospheres, and industrial processing lubricants. The core operational distinction between the two model series lies within their approved application atmospheres: the standard XBL series is optimized for conventional high-accuracy conveyor, tank, silo, and packaging scales; whereas the XBL-Ex series features specialized intrinsically safe electronic barriers certified under ATEX/IECEx standards for explosive hazardous atmospheres classified under Vùng/Zone 1, 2, 21, and 22 guidelines—widely present in petrochemical refineries, pharmaceutical cleanrooms, paint blending facilities, and manufacturing spaces prone to explosive organic dust clouds. Measurement data packages are digitized instantly directly on the internal embedded electronic board and transmitted as high-speed digital signals with extensive internal resolution, achieving 100% absolute immunity against electromagnetic interference (EMI/RFI) emitted by adjacent large industrial motors, welding currents, or variable frequency drives (VFDs). Furthermore, owing to complete pre-calibrated factory metrics, systems incorporating Eilersen XBL/XBL-Ex load cells operate via an absolute "Plug-and-Play" (Calibration-free) deployment mechanism, allowing maintenance personnel to hot-swap sensors seamlessly on-site without requiring massive physical dead-weights to re-calibrate the entire industrial weighing infrastructure, thereby drastically reducing production downtime and generating superior long-term economic dividends for modern enterprises.
• Manufacturer: Eilersen Electric Digital Weighing Technology A/S
• Country of Origin: Denmark
• Product Type: Digital Capacitive Load Cell Series
• Product Model Classifications:
- Eilersen XBL Series (Standard Industrial Environment - Non-ATEX)
- Eilersen XBL-Ex Series (Intrinsically Safe Explosion-proof - ATEX / IECEx Certified)
• Explosion Protection Accreditations (XBL-Ex Models): ATEX & IECEx certified for secure continuous deployment in Hazardous Areas Zone 1, 2, 21, 22
• Measurement Principle: Proprietary Patented Digital Capacitive Sensing Technology
• Housing Material: Premium High-Grade Stainless Steel 1.4542 (AISI 630) for exceptional chemical and corrosion resistance
• Ingress Protection Rating: IP68 and IP69K (Fully hermetically laser-welded structural design)
• Nominal Rated Capacities: Extensive capacity selection range tailored for small, medium, and large industrial weighing applications
• Safe Overload Tolerance Limits: Up to 1000% of nominal rated capacity without mechanical structural degradation
• Side Load and Torsional Force Tolerance: Outstanding resistance matrices ensuring unaltered measurement accuracy under cross-directional stresses
• Data Output Architecture: True high-speed digital interface signal, high internal resolution, 100% EMI/RFI immune
• Fieldbus Communication Protocol Support (via Eilersen Interface Gateways): Seamless automation integration with Profinet, Profibus DP, EtherNet/IP, Modbus TCP/IP, EtherCAT, DeviceNet, RS485, and legacy Analog configurations (4-20mA / 0-10V)
• Connection Cable Options: High-insulation RG58 coaxial cable or optional heavy-duty braided stainless steel armored jacket against mechanical rodent damage
• Exclusive Operational Features: 100% calibration-free deployment, instant Plug-and-Play field swapping capabilities without dead-weights
