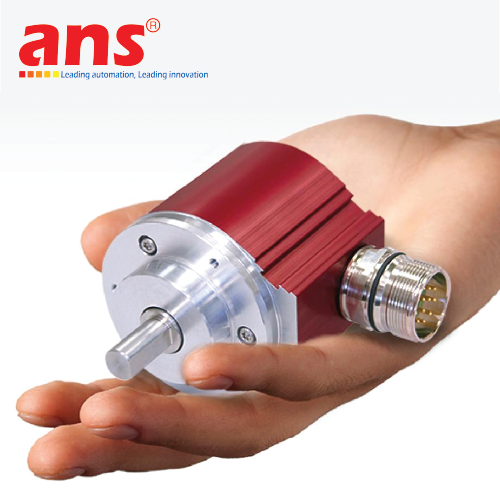

Encoder CEV65M-01460 TR-Electronic Vietnam
Price: Contact
Brand: TR Electronic
Category: 4.0 Industry
Supplier: ansvietnam
Origin: EU
Gọi lại cho tôi
0911472255Encoder CEV65M-01460 TR-Electronic Vietnam
Connector pin assignment for Profibus-DP Encoder with PNO-Profile Class 2
Design with two-pole screw terminals and Preset
General note:
- If the encoder is the last station in the profibus line, the DIP switches S3 and S4 for the profibus terminator (switching-on of the terminal resistance) must be switched on. Otherwise they must be switched off.
- The profibus also works when the encoder is removed. Is the encoder the last station in the profibus line, the reference potential of the terminator resistances is missing!
- In order to enable a separate wiring of incoming and outgoing signals the profibus terminals and the terminals for the supply voltage have two connection possibilities.
- TR-Electronic recommends for the operation to use only bus cables certified by the Profibus User Organization (PNO).
- With the BCD address switches S1 (10 ^ 1) and $2 (10 deg) the station address for the profibus is set from 3 to 99.
