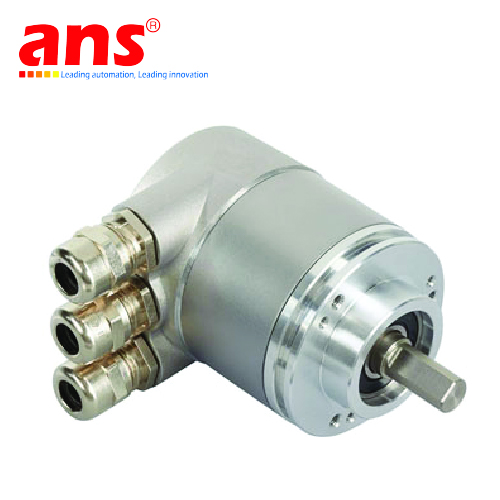

Encoder OCD-DPC1B-1212-C100-H3P Posital Fraba Vietnam
.jpg)
Interface
- Interface: Profibus DP
- Profile: DPV0, DPV1 and DPV2 Class 2 (EN50170 + EN50254)
- Diagnostics: Memory
- Manual Functions: Address selector switch 0-99 and terminal resistor (with connection cap)
- Features: Round Axis
- Transmission Rate: ≤12 Mbaud
- Interface Cycle Time: ≥ 1 ms
- Programming Functions: Resolution, gearing factor (physical resolution) , velocity scaling + filter, preset (zero point), counting direction, limit switches , node number, teach-in, diagnosis
