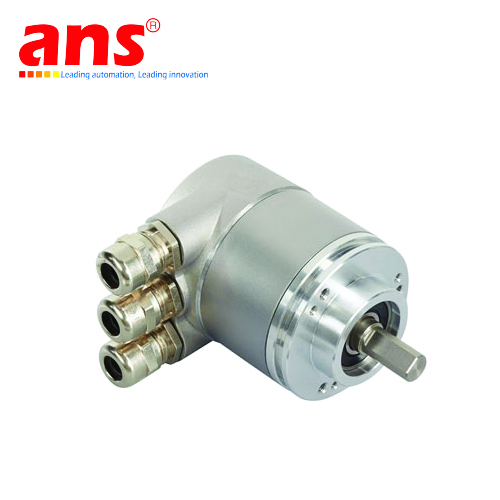

0911472255OCD-DPC1B-1212-C10S-H3P Encoder Posital Fraba Vietnam
Interface
- Interface Profibus DP
- Profile DPV0, DPV1 and DPV2 Class 2 (EN50170 + EN50254)
- Diagnostics Memory
- Manual Functions Address selector switch 0-99 and terminal resistor (with connection cap)
- Features Round Axis
- Transmission Rate ≤12 Mbaud
- Interface Cycle Time ≥ 1 ms
- Programming Functions Resolution, gearing factor (physical resolution) , velocity scaling + filter, preset (zero point), counting direction, limit switches , node number, teach-in, diagnosis
Outputs
- Output Driver Profibus Data Interface, galvanically isolated via opto-couplers
- Electrical Data
- Supply Voltage 10 – 30 VDC
- Current Consumption ≤ 115 mA @ 10 V DC, ≤ 50 mA @ 30 V DC
- Power Consumption ≤ 1.5 W
- Start-Up Time < 1 s
- Reverse Polarity Protection Yes
- Short Circuit Protection Yes
- EMC: Emitted Interference DIN EN 61000-6-4
- EMC: Noise Immunity DIN EN 61000-6-2
- MTTF 109 years @ 40 °C
Sensor
- Technology Optical
- Resolution Singleturn 12 bit
- Resolution Multiturn 12 bit
- Multiturn Technology Mechanical Gearing (no Battery)
- Accuracy (INL) ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit)
- Code Binary
