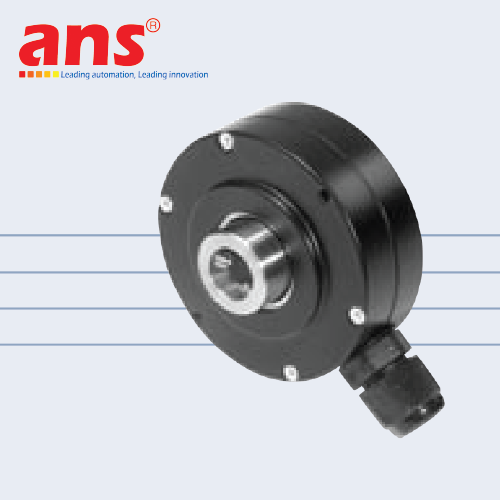

HOLLOW SHAFT ENCODER IH581.1400R63.01024 Global Encoder Vietnam
Price: Contact
Brand: Global Encoder Vietnam
Category: Encoder
Supplier: ansvietnam
Origin: EU
Gọi lại cho tôi
0911472255HOLLOW SHAFT ENCODER IH581.1400R63.01024 Global Encoder Vietnam
ELECTRICAL SPECIFICATIONS
- Supply Voltage 4.75-30 V DC
- Current Consumption 40 mA (max)
- Output Circuit Push-Pull, RS 422A
- Impulse Frequency 200 kHz (max)
- Logic Level (high) Vcc - 0.7 Volt
- Logic Level (low) 0.25 Volt (max)
- Short Circuit Protection 100 %
MECHANICAL SPECIFICATIONS
- Cover Aluminium
- Body Aluminium
- Shaft Stainless Steel
- Speed 6000 RPM (max)
- Torque > 0.04 Nm
- Loading Axial 20 N, Radial 15 N
- Protection IP 65
- Temperature
- -20˚...+70˚ C (-4˚...+158˚ F)
- +100˚ C (+212˚ F) Optional
- Weight 0.55 lb (250 g)
