ES58-12-00-GY2-10-PT-RX002 Encoder Lika Vietnam





Description

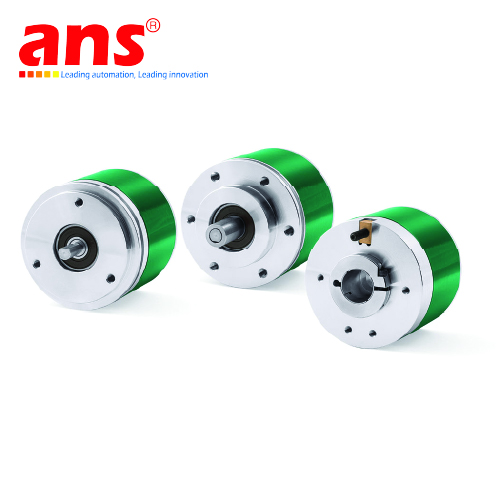

  • Compact optical single turn encoder
  • Size 58 mm
  • Servo or clamp flange
  • Solid shaft or hollow shaft version
  • Resolution up to 8192 cpr
  • High degree of protection, IP67


Technical details


  • Output/Interface SSI, Bit parallel Push-Pull, NPN
  • Dimension Ø 58 mm
  • Shaft Ø max solid 12 mm, hollow 15 mm
  • Connections M12 or M23 connector, cable output
  • Resolution 8192 cpr (13 bit)
  • Protection IP67
  • Shaft rotational speed 12000 rpm
  • Product status Active
