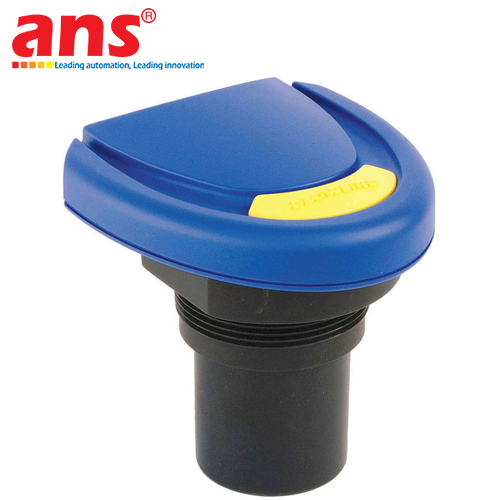

Flowline EchoSpan LU23 Ultrasonic Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Flowline EchoSpan® LU23 Non-Contact Ultrasonic Liquid Level Transmitter is a long-range industrial level transmitter designed for continuous measurement in large storage tanks, aggressive chemical vessels, and wastewater treatment basins. Featuring an extended measurement span up to 10 meters (32.8 feet), the LU23 provides non-contact, highly accurate level monitoring without requiring physical contact with the process media.
Engineered for reliable operation in harsh chemical environments, the EchoSpan LU23 incorporates a PVDF (Polyvinylidene Fluoride) transducer for superior resistance against strong acids and alkalis, housed within a weather-tight Polycarbonate NEMA 4X / IP65 enclosure. The sensor features intelligent digital signal processing to automatically reject false echo reflections caused by internal tank obstructions and includes automatic temperature compensation for precise reading stability across varying ambient temperatures. The transmitter supplies a 2-wire 4-20 mA loop-powered output, with quick calibration and fail-safe configuration enabled via Flowline's free WebCal® software interface using a USB Fob adapter.
• Manufacturer: Flowline (USA)
• Product Series: EchoSpan® LU23 Series
• Measurement Technology: Non-contact Ultrasonic
• Measurement Range: 8 inches to 32.8 feet (20 cm to 10 m)
• Accuracy: ± 0.2% of span
• Resolution: 0.079" (2 mm)
• Dead Band: 8" (20 cm)
• Beam Width: 3" (7.6 cm)
• Signal Output: 4-20 mA, two-wire (Loop-powered)
• Fail-safe Diagnostics: Selectable 4 mA, 20 mA, 21 mA, 22 mA, or Hold last
• Supply Voltage: 14 - 28 VDC
• Loop Resistance: 500 Ohms @ 24 VDC
• Temperature Compensation: Automatic
• Hardware Construction & Materials:
- Electronics Enclosure: Polycarbonate (NEMA 4X / IP65)
- Transducer Material: Polyvinylidene Fluoride (PVDF)
- Sealing Gasket: Viton®
• Process Mount: 2" NPT (LU23-0001 models) or 2" G (LU23-0011 models)
• Conduit Entrance: (1) 1/2" NPT connector
• Process Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Ambient Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Working Pressure Range: 30 psi (2 bar) maximum
• Configuration Utility: Free WebCal® PC Software via LI99-2001 USB Fob adapter
• Certifications & Approvals: CE, RoHS compliant
