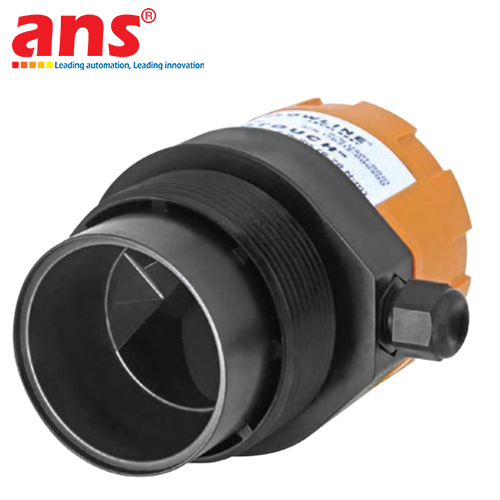

Flowline EchoSwitch US01 Reflective Ultrasonic Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Flowline EchoSwitch® US01 General Purpose Reflective Ultrasonic Level Transmitter provides continuous non-contact level measurement with embedded relay switching for small tank applications. Condensation build-up on conventional horizontal ultrasonic transducers causes up to 50% acoustic signal loss. The US01 eliminates this issue through Flowline's patented Reflective Technology™, which mounts the corrosion-resistant PVDF transducer vertically facing a 45° reflector. Condensation droplets naturally shed off the vertical face via gravity, keeping the signal pathway completely clear for uncompromised accuracy.
Designed with a 1.5-meter (4.9 feet) measurement span and an ultra-short 3.8 cm (1.5 inches) deadband, the EchoSwitch US01 maximizes usable filling volume in compact tanks. The unit features three programmable SPST relays rated at 60 VA (1A max), functioning as an integrated level controller. It can be configured for 1 pump/valve control with 2 high/low alarms, or as 3 independent level switch setpoints. Setup, diagnostic testing, and span calibration are executed easily via Flowline’s intuitive WebCal® PC software interface using a USB Fob adapter.
• Manufacturer: Flowline (USA)
• Product Series: EchoSwitch® US01 Series
• Measurement Technology: Non-contact Reflective Ultrasonic (Reflective Technology™)
• Measurement Range: 1.5" to 4.9 feet (3.8 cm to 1.5 m)
• Accuracy: ± 3 mm (0.125")
• Resolution: 0.5 mm (0.019")
• Dead Band: 1.5" (3.8 cm)
• Beam Width: Narrow 2" (5 cm)
• Analog Output Signal: 4-20 mA, two-wire (Loop-powered)
• Embedded Control Relays: (3) SPST relays (Configurable for alarm high/low, fill/empty pump control)
• Relay Contact Rating: 60 VA, 1A maximum
• Fail-safe Diagnostics: Selectable 4 mA, 20 mA, 21 mA, 22 mA, or Hold last
• Supply Voltage: 14 - 28 VDC (0.5W maximum power consumption)
• Loop Resistance: 500 Ohms @ 24 VDC
• Temperature Compensation: Automatic (-40° to 80° C)
• Hardware Construction & Materials:
- Sensor Housing Material: Polypropylene (PP)
- Transducer Material: Polyvinylidene Fluoride (PVDF)
- Cable Jacket Material: Shielded Polyurethane (PUR)
- Cable Length: 48" (1.2 m) 7-conductor
• Enclosure Rating: Type 6P / IP68 (Fully submersible)
• Process Mount: 2" NPT (-0001 models) or 2" G (-0011 models)
• Process Temperature Range: -40°F to 176°F (-40°C to 80°C)
• Ambient Temperature Range: -31°F to 140°F (-35°C to 60°C)
• Maximum Pressure: 30 psi (2.1 bar)
• Configuration Utility: Free WebCal® PC Software via LI99-2001 USB Fob adapter
• Certifications & Approvals: UL 61010-1 listed, CE, RoHS compliant
