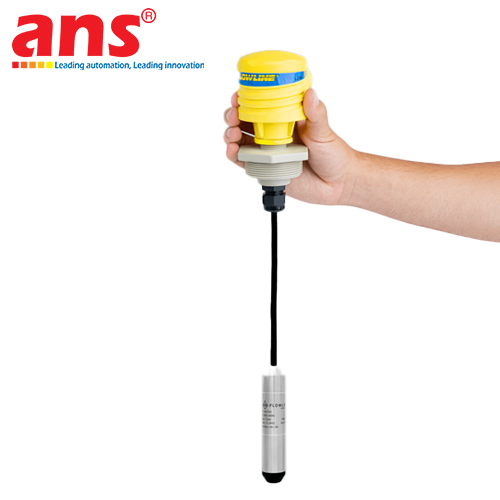

Flowline LevelTrack LD31 Magnetic Float Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Flowline LevelTrack® LD31 Continuous Magnetic Float Liquid Level Transmitter is a highly reliable electro-mechanical level measurement solution engineered for industrial tanks, vertical vessels, and deep sumps. Unlike non-contact ultrasonic or radar sensors that can be degraded by thick surface foam, heavy vapor condensation, or internal tank obstructions, the LD31 operates on a direct magnetic principle: a float housing a permanent magnet moves along a 316L stainless steel stem, actuating an internal reed switch/resistor chain to output a precise, continuous signal proportional to liquid level.
Built for long-term durability in demanding environments, the sensor’s wetted components—including the stem, float, and process fitting—are entirely constructed from heavy-duty 316L stainless steel, offering superior chemical resistance against fuels, oils, solvents, wastewater, and mild chemicals. The LD31 series supports custom stem lengths ranging from 0.6m to 5.5m (2 to 18 feet) and features an integrated transmitter module providing a 2-wire 4-20 mA loop-powered output with HART 7 communication protocol. Housed in a NEMA 4X / IP65 cast aluminum junction box, zero and span calibration can be performed conveniently on-site via integral push-buttons without removing the instrument from the tank.
• Manufacturer: Flowline (USA)
• Product Series: LevelTrack® LD31 Series
• Measurement Technology: Continuous Magnetic Float / Reed Chain
• Measuring Range (Stem Length): Customizable from 2 feet to 18 feet (0.6 m to 5.5 m)
• Accuracy: ± 6 mm (0.25")
• Resolution: 6 mm (0.25")
• Minimum Liquid Specific Gravity: 0.55 g/cm³
• Signal Output: 4-20 mA, two-wire (Loop-powered) / HART 7 Protocol
• Fail-safe Signal: Selectable 3.9 mA or 22 mA
• Supply Voltage: 12 - 30 VDC
• Loop Resistance: 600 Ohms @ 24 VDC
• Configuration: Integrated push-buttons for Zero/Span field calibration
• Hardware Construction & Materials:
- Enclosure: Heavy-duty cast aluminum, epoxy-coated (NEMA 4X / IP65)
- Stem & Float Material: 316L Stainless Steel
- Seals: Viton® / PTFE
• Process Connection: 2" NPT / G2" Thread or 2" / 3" / 4" ANSI Flange options
• Conduit Entrance: (2) 1/2" NPT
• Process Temperature Range: -40°F to 257°F (-40°C to 125°C)
• Ambient Temperature Range: -40°F to 185°F (-40°C to 85°C)
• Working Pressure Range: Up to 300 psi (20.7 bar)
• Certifications & Approvals: cFMus, CE, RoHS compliant
