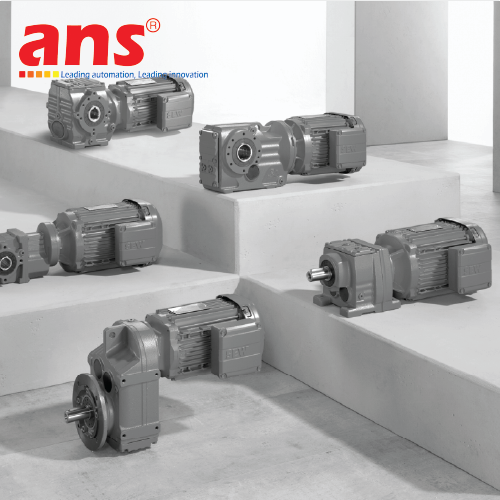

Gearmotors SA67/TDRN90L4 SEW Vietnam

Product features

The new, optimized design (E)DRN100LM4 with a rated frequency of 60 Hz or 50/60 Hz and a rated power of 2.2 kW replaces all existing designs (E)DRN100L4 of the same power and frequency.
The new size offers the following advantages:
DRN.. motors of size 100LM have a lower inertia than motors of size 100L.

Since the rated torque and rated power remain unchanged, the motor's operating behavior is even more dynamic.
The lower starting current ratio further reduces the load on the system's protection devices.
Approvals, certifications, options, and accessories of the (E)DRN100L4 are also avail-able for the new designs. The price and delivery time remain unchanged.

INFORMATION

The dimensions of the motor (E)DRN100LM4 are identical to the (E)DRN100L4 ones. You find the dimensions of the (E)DRN100LM4 gearmotors in the dimension sheets of the respective gearmotors with motor (E)DRN100L4.

1	100% EU Origin	SEW Vietnam	Typ: SA67/TDRN90L4 Gearmotors Helical-worm gearmotors S..DRN.. (IE3) * Replacement for SA67/T DRE90L4 (90.7215014209.0001.15), but with current motor generation. Please note that the motors may differ in size (length, diameter, terminal box position) and technical data. Therefore, please check the technical data and dimension
2	100% EU Origin	SEW Vietnam	Typ: FH77/G DRN132L4 Gearmotors Parallel-shaft helical gearmotors F..DRN.. (IE3) As same as: 90.7211691318.0001.15
3	100% EU Origin	SEW Vietnam	Replacement Typ: KHF97DRN100LS4/C Gearmotors Bevel-helical gearmotors K..DRN.. (IE3) *Replacement for KHF97 DRP100L4/C (90.7211691313.0001.15), but with current motor generation. Please note that the motors may differ in size (length, diameter, terminal box position) and technical data. Therefore, please check the technical data and dimension sheets.
4	100% EU Origin	SEW Vietnam	Typ: KH87/TR57DRN90S4/TF/C Gearmotors Bevel-helical gearmotors K..DRN.. (IE3) *Replacement for KH87/T R57 DRE90M4/TF/C (90.7205332109.0001.15), but with current motor generation. Please note that the motors may differ in size (length, dia- meter, terminal box position) and technical data. Therefore, please check the technical data and dimension sheets.
5	100% EU Origin	SEW Vietnam	Typ: FH67/GDRN90L4 Gearmotors Parallel-shaft helical gearmotors F..DRN.. (IE3) *Replacement for FH67/G DRE90L4 (90.7208152117.0001.13) , but with current motor generation. Please note that the motors may differ in size (length, diameter, terminal box position) and technical data. Therefore, please check the technical data and dimension sheets.
6	100% EU Origin	SEW Vietnam	Typ: FA87/G DRN160L4 Gearmotors Parallel-shaft helical gearmotors F..DRN.. (IE3) *Replacement for: FH67/G DRE90L4 (90.7208152117.0001.13) , but with current motor generation. Please note that the motors may differ in size (length, diameter, terminal box position) and technical data. Therefore, please check the technical data and dimension sheets.
7	100% EU Origin	SEW Vietnam	Typ: KF67DRN90SR6BE2HR Gearmotors Bevel-helical gearmotors K..DRN.. (IE3) *Replacement for KF67 DRS80S6BE2HR (90.7208152110.0001.15), but with current motor generation. Please note that the motors may differ in size (length, diameter, terminal box position) and technical data. Therefore, please check the technical data and dimension sheets.
8	100% EU Origin	SEW Vietnam	Typ: FAF37DRN71MS4 Gearmotors Parallel-shaft helical gearmotors F..DRN.. (IE3) *Replacement for FAF37 DR63L4 (90.1971065730.0001.14), but with current motor generation. Please note that the motors may differ in size (length, diameter, terminal box position) and technical data. Therefore, please check the technical data and dimension
9	100% EU Origin	SEW Vietnam	Typ: FA47/GDRN90L4 Gearmotors Parallel-shaft helical gearmotors F..DRN.. (IE3) *Replacement for FA47/G DRE90L4 (90.7208152108.0001.15), but with current motor generation. Please note that the motors may differ in size (length, diameter, terminal box position) and technical data. Therefore, please check the technical data and di- mension sheets.
